6 / 4 / 2.5 hp

or
Call 918-470-6790

Description

6 HP

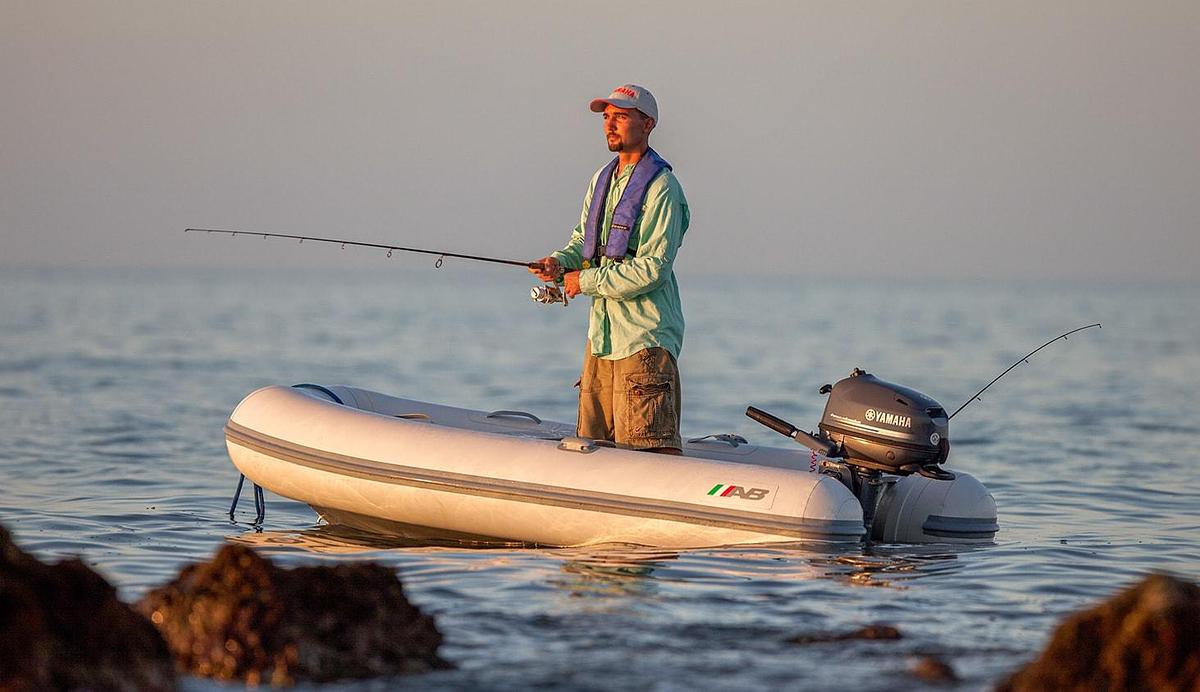

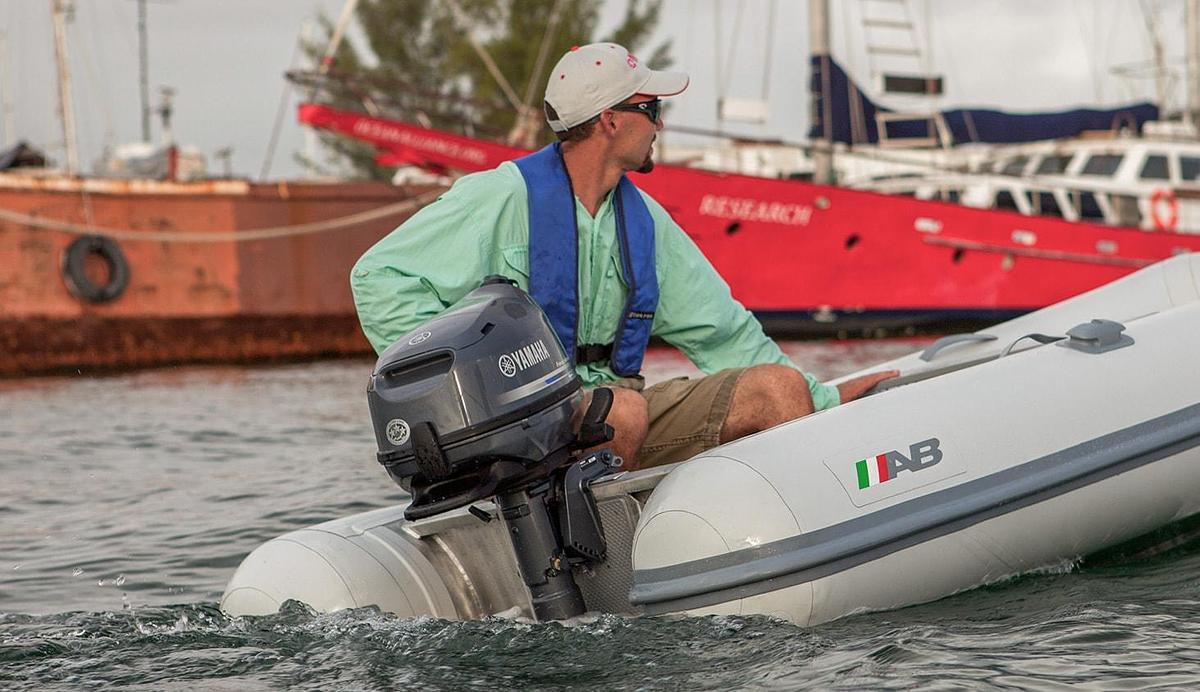

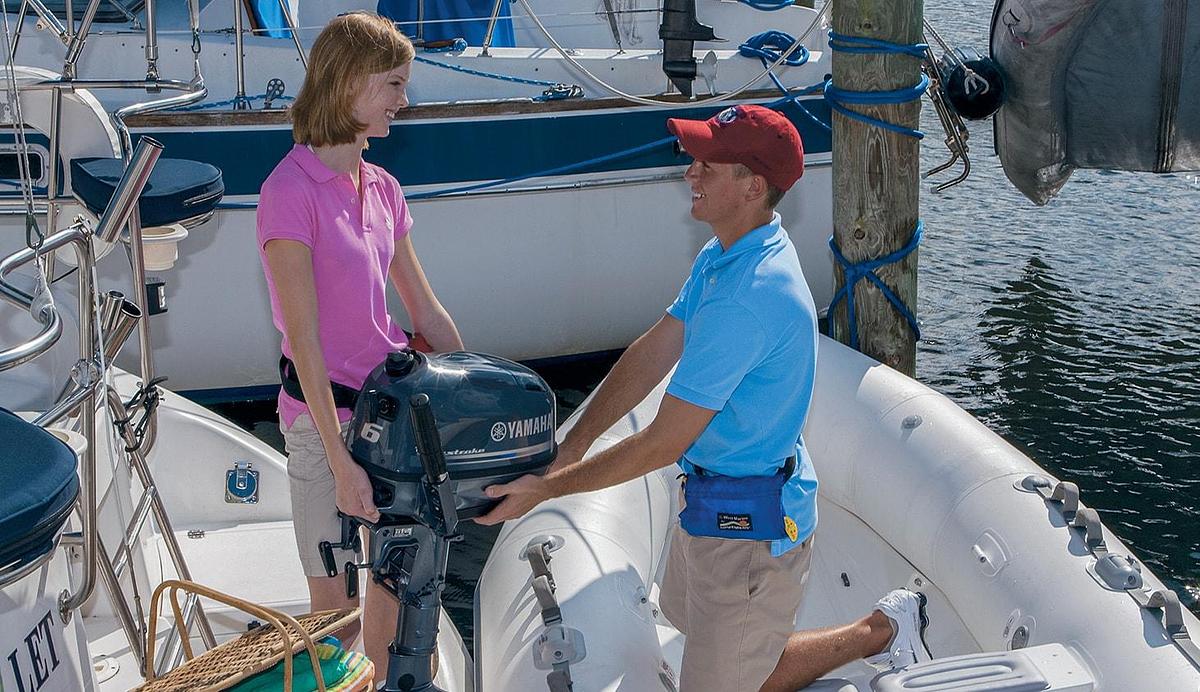

Our 139-cc 6-hp portable is an impressive little outboard. It boasts surprising features for such a small motor, like labyrinth exhaust and a long span mounting system for smooth, quiet power. It also offers the convenience of an external fuel tank (in addition to its built-in tank) for extended range and added convenience.

  • Only 60 pounds (15” shaft model)
  • Available in 15” and 20” shaft lengths
  • Solid 6-amp alternator (optional)
    • 4 HP

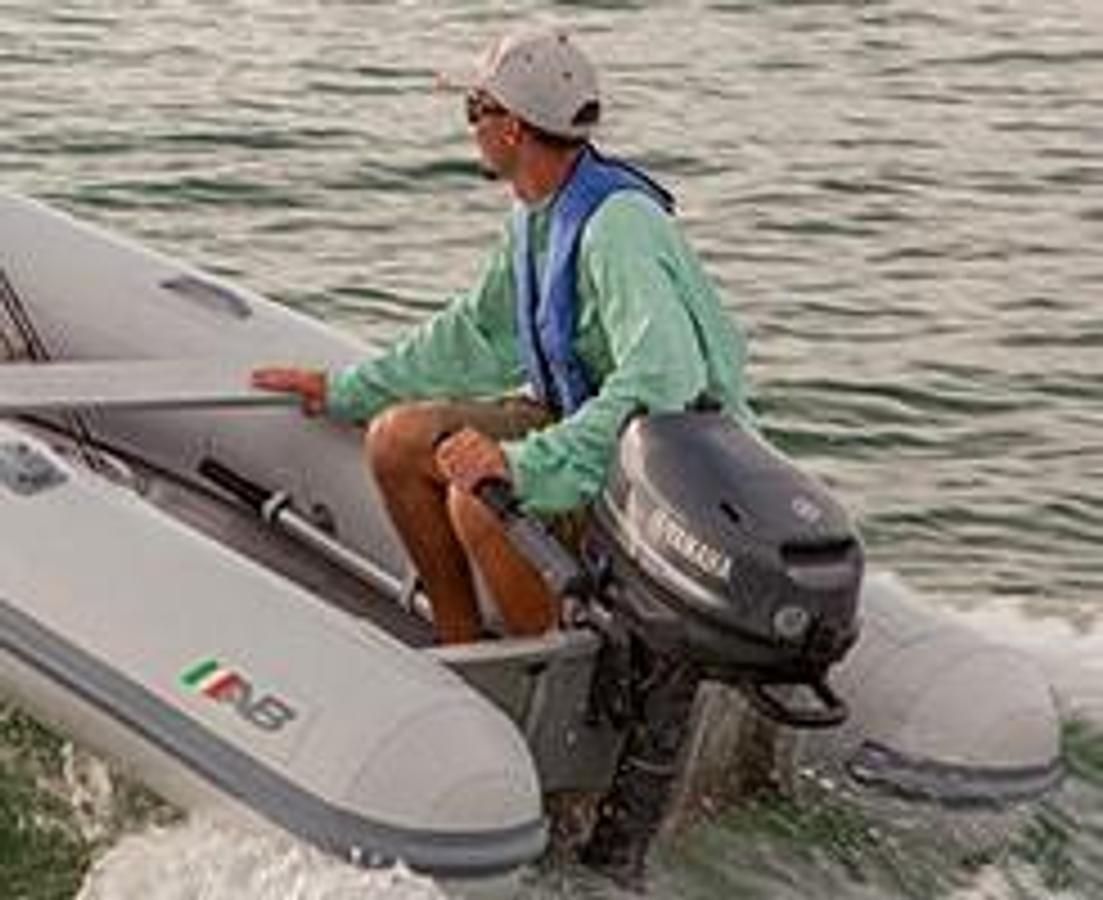

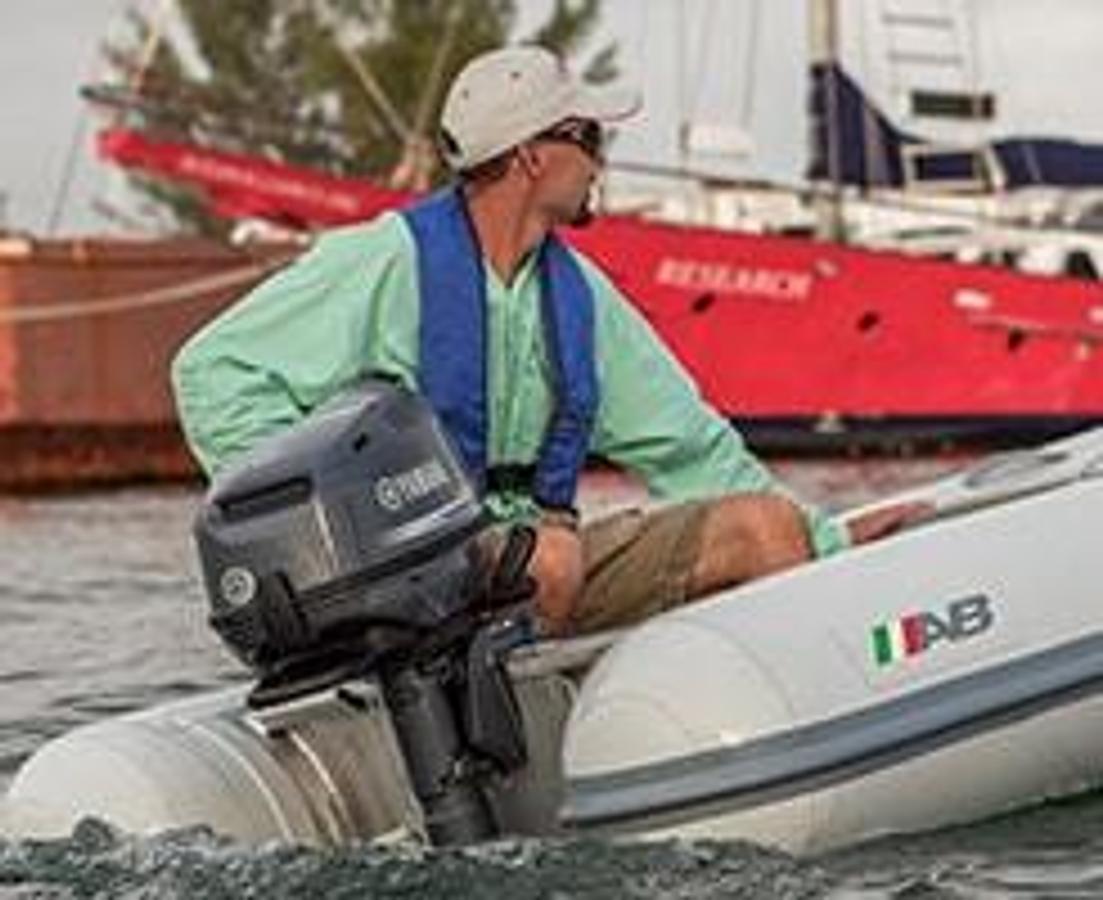

    Our 139-cc 4-hp portable outboard mirrors our OHV F6, with a couple less horses. It features the same ergonomic, easy-grip starter handle with a built-in decompression device for effortless starts. The F4 also features a built-in fuel tank with the option of switchable access to an additional external tank for amazing extended range. There’s no stopping this little brute.

  • Only 60 pounds (15” shaft model)
  • Available in 15” and 20” shaft lengths
  • Solid 6-amp alternator
    • 2.5 HP

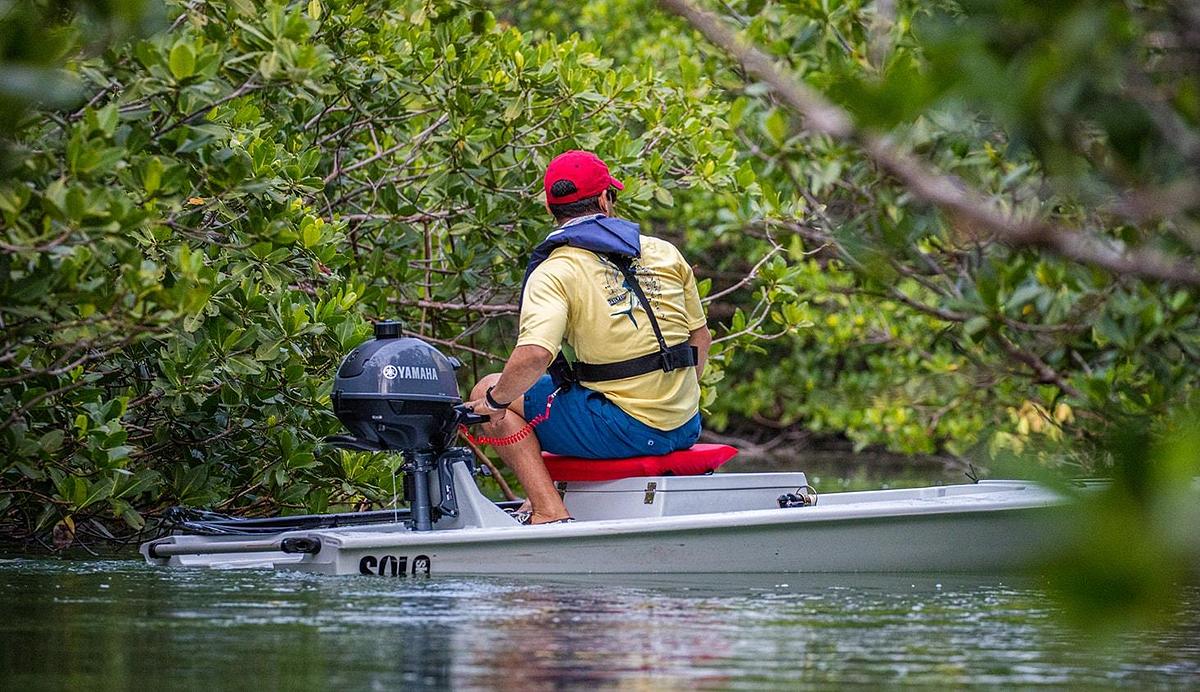

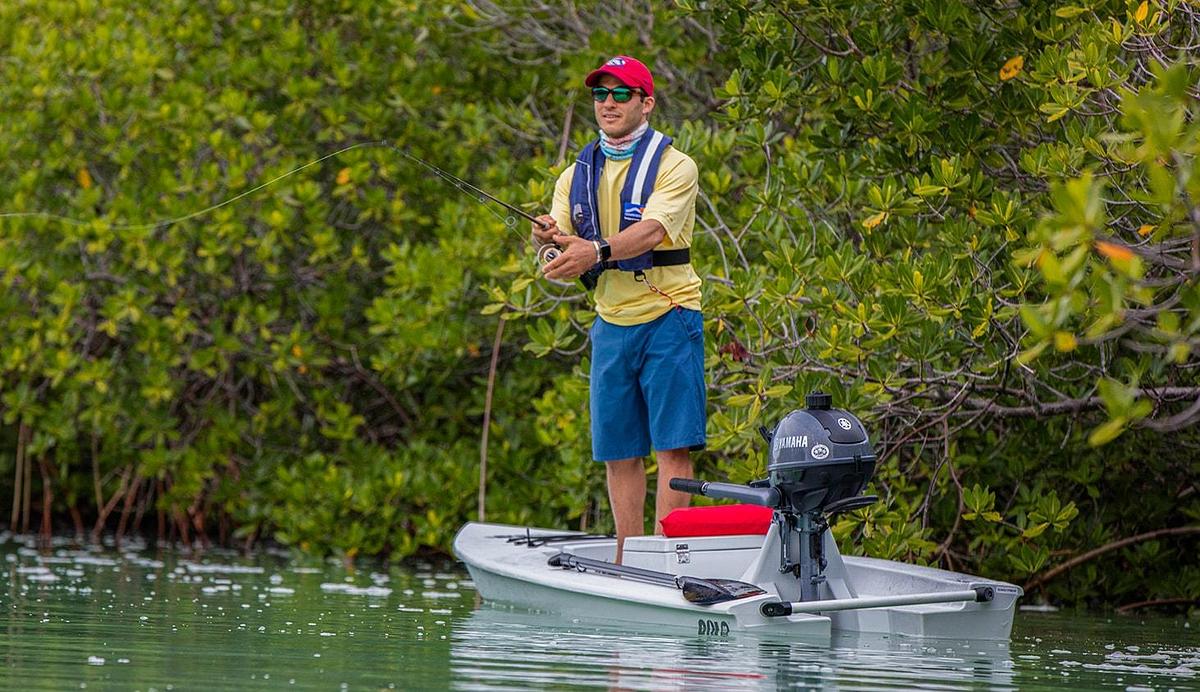

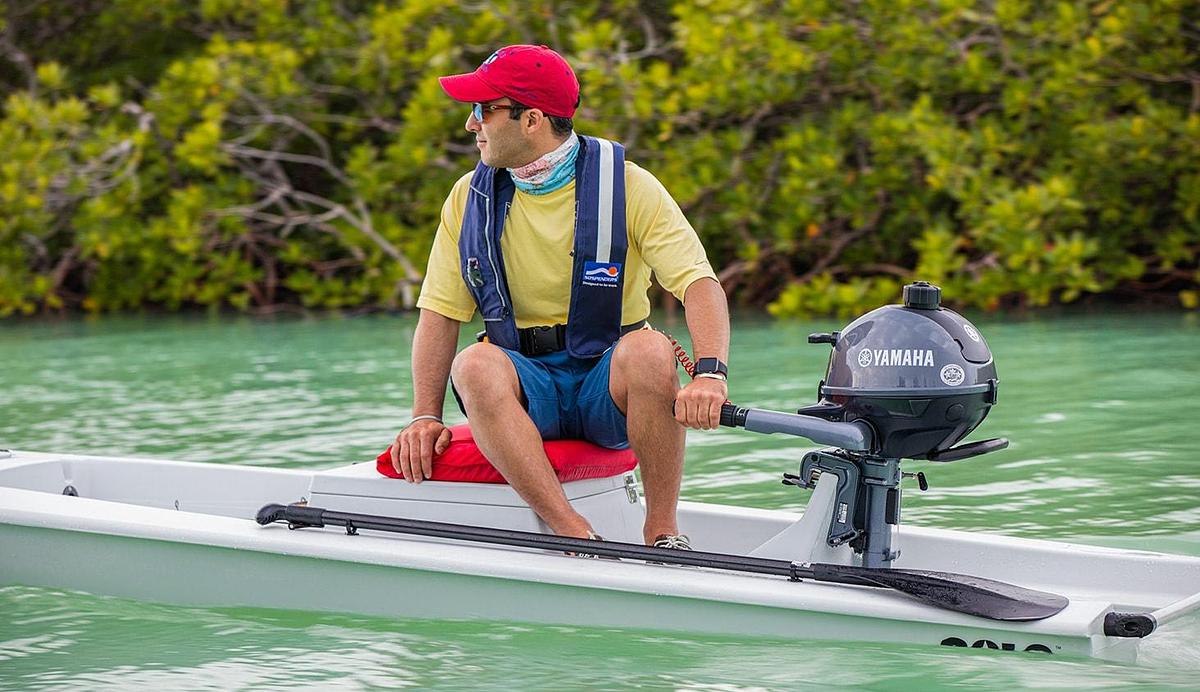

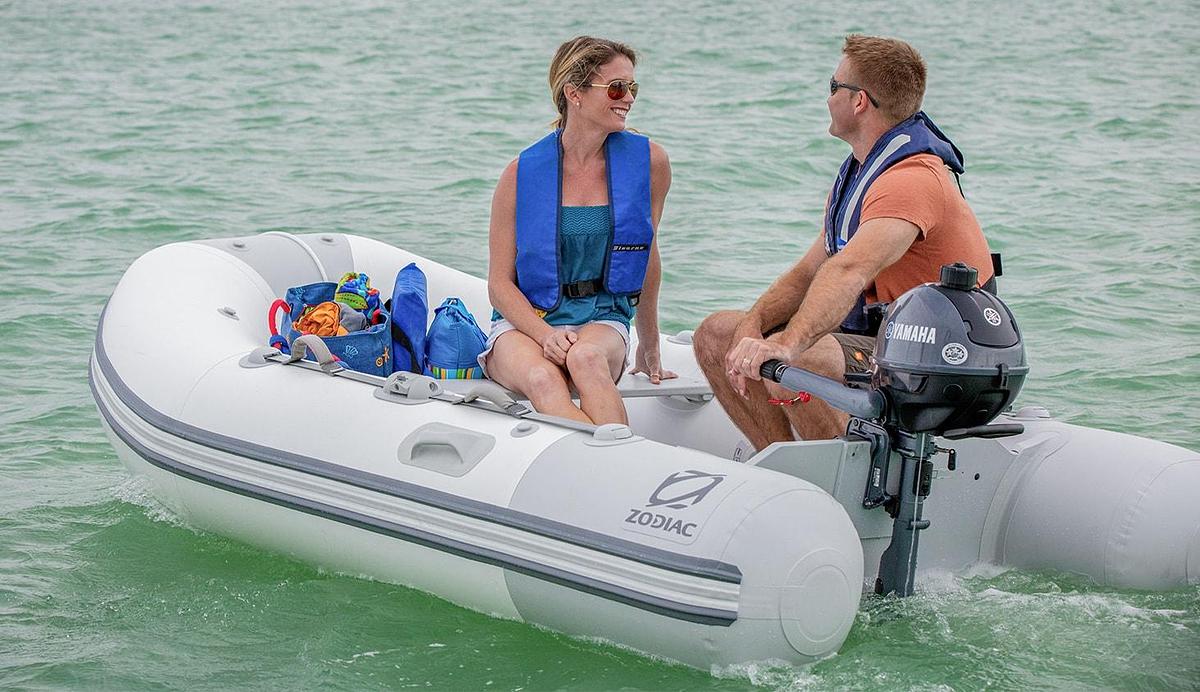

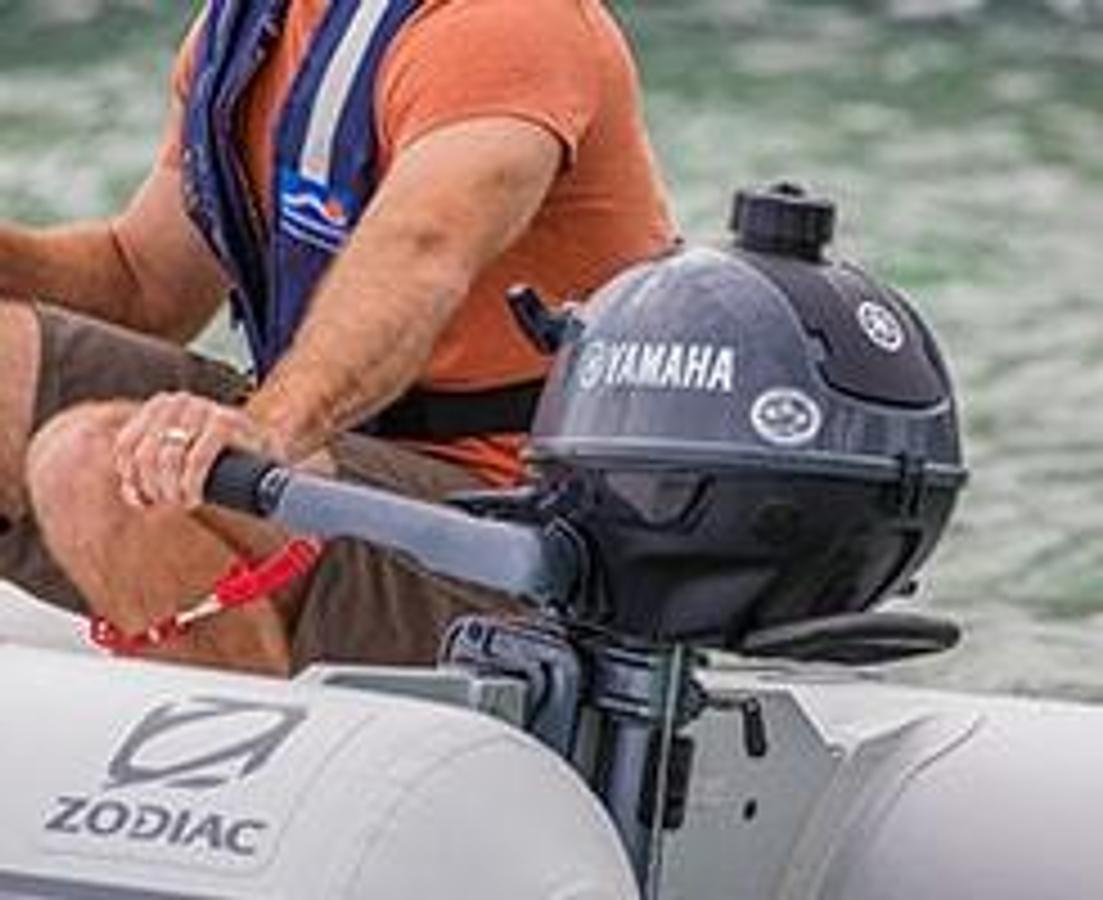

    Our 72-cc 2.5-hp portable outboard is the smallest motor on our roster, but it still packs a punch. Completely redesigned, it’s even more portable, easier to store and clean burning.

  • Only 37 pounds (15” shaft model)
  • Available in 15” and 20” shaft lengths

    • Specifications

    ManufacturerYamaha
    Model6 / 4 / 2.5 hp
    ConditionNew
    Weight †6 HP: 27 kg (60 lbs) - 28 kg (61 lbs) | 4 HP: 27 kg (60 lbs) - 28 kg (61 lbs) | 2.5 HP: 17 kg (37 lbs) - 20 kg (40lbs)
    Full Throttle RPM Range6 HP: 4500 ~ 5500 | 4 HP: 4000 ~ 5000 | 2.5 HP: 5250 ~ 5750
    Fuel Induction System6 HP: Carb | 4 HP: Carb | 2.5 HP: Carb
    Recommended Engine Oil6 HP: Yamalube® 4M (See owner's manual) | 4 HP: Yamalube® 4M (See owner's manual) | 2.5 HP: Yamalube® 4M (See owner's manual)
    Engine Type6 HP: 1 cyl | 4 HP: 1 cyl | 2.5 HP: 1 cyl
    Displacement6 HP: 139cc | 4 HP: 139cc | 2.5 HP: 72cc
    Bore x Stroke6 HP: 62 x 46mm (2.44 x 1.81in) | 4 HP: 62 x 46mm (2.44 x 1.81in) | 2.5 HP: 54 x 31.5 mm (2.13 x 1.24 in)
    Prop Shaft Horsepower6 HP: 6hp at 5000 rpm | 4 HP: 4hp at 4500 rpm | 2.5 HP: 2.5hp at 5500 rpm
    Alternator Output at W.O.T.6 HP: 6 Amp | 4 HP: 6 Amp | 2.5 HP: N/A
    Compression Ratio6 HP: 8.9:1 | 4 HP: 8.9:1 | 2.5 HP: 8.8:1
    Recommended Fuel6 HP: Octane 87 | 4 HP: Octane 87 | 2.5 HP: Octane 87
    Recommended Fuel Filtration6 HP: N/A | 4 HP: N/A | 2.5 HP: N/A
    C.A.R.B. Rating6 HP: 3-Star | 4 HP: 3-Star | 2.5 HP: 2-Star
    Exhaust6 HP: Above Propeller | 4 HP: Above Propeller | 2.5 HP: Above Propeller
    Intake6 HP: 2 | 4 HP: 2 | 2.5 HP: 2
    Ignition6 HP: CDI | 4 HP: CDI | 2.5 HP: TCI
    Spark Plug6 HP: CR6HSB | 4 HP: CR6HSB | 2.5 HP: CR6HSB
    Starting System6 HP: Manual | 4 HP: Manual | 2.5 HP: Manual
    Lubrication6 HP: Wet Sump | 4 HP: Wet Sump | 2.5 HP: Splash
    Engine Oil Capacity6 HP: 0.6L | 4 HP: 0.6L | 2.5 HP: 0.35L
    Recommended Cooling6 HP: Thermostatic Control | 4 HP: Thermostatic Control | 2.5 HP: Thermostatic Control
    Ethanol Blend Limit6 HP: 10% Maximum | 4 HP: 10% Maximum | 2.5 HP: 10% Maximum
    Gear Ratio6 HP: 2.08:1 | 4 HP: 2.08:1 | 2.5 HP: 2.01:1
    Gear Shift6 HP: Forward, Neutral, Reverse | 4 HP: Forward, Neutral, Reverse | 2.5 HP: Forward, Neutral
    Shaft Length6 HP: 15" - 20" | 4 HP: 15" - 20" | 2.5 HP: 15" - 20"
    Degree of Tilt6 HP: 69° | 4 HP: 69° | 2.5 HP: 79°
    Degree of Trim6 HP: -4° through +16° | 4 HP: -4° through +16° | 2.5 HP: -4° through +16°
    Mounting Centers6 HP: N/A | 4 HP: N/A | 2.5 HP: N/A
    Steering Angle (maximum)6 HP: 90° from center, either direction | 4 HP: 90° from center, either direction | 2.5 HP: 360° from center, either direction
    Warranty6 HP: Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial | 4 HP: Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial | 2.5 HP: Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial
