70 / 60 / 50 hp

or
Call 918-470-6790

Description

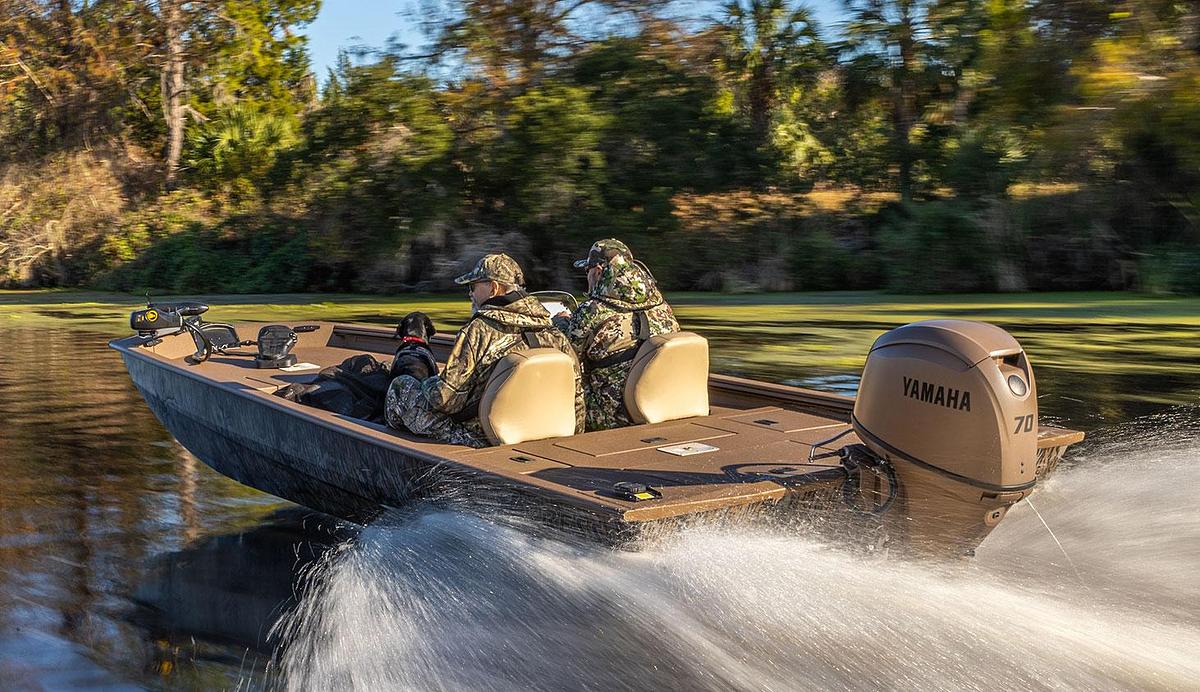

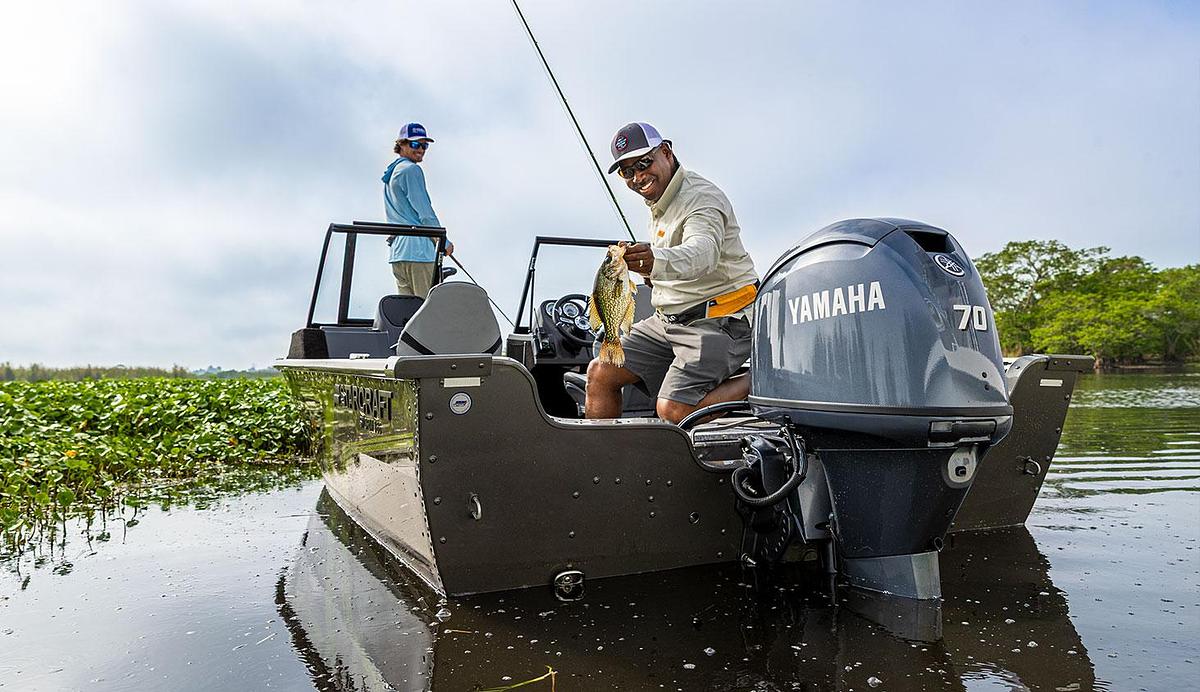

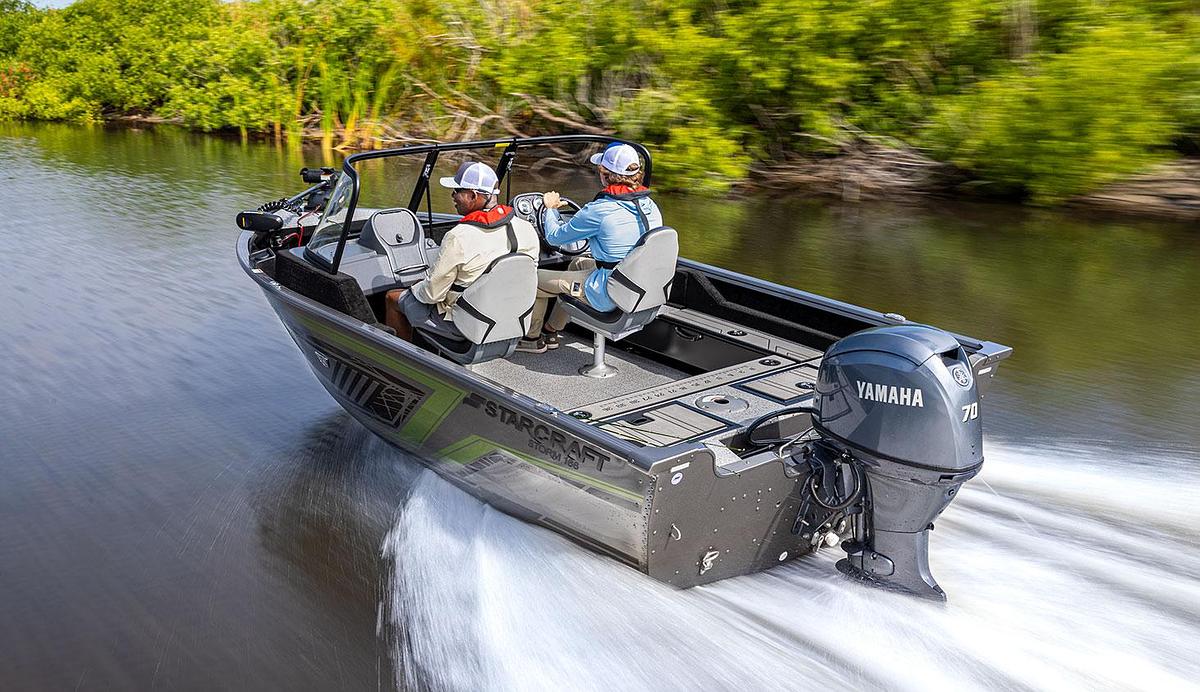

70 HP

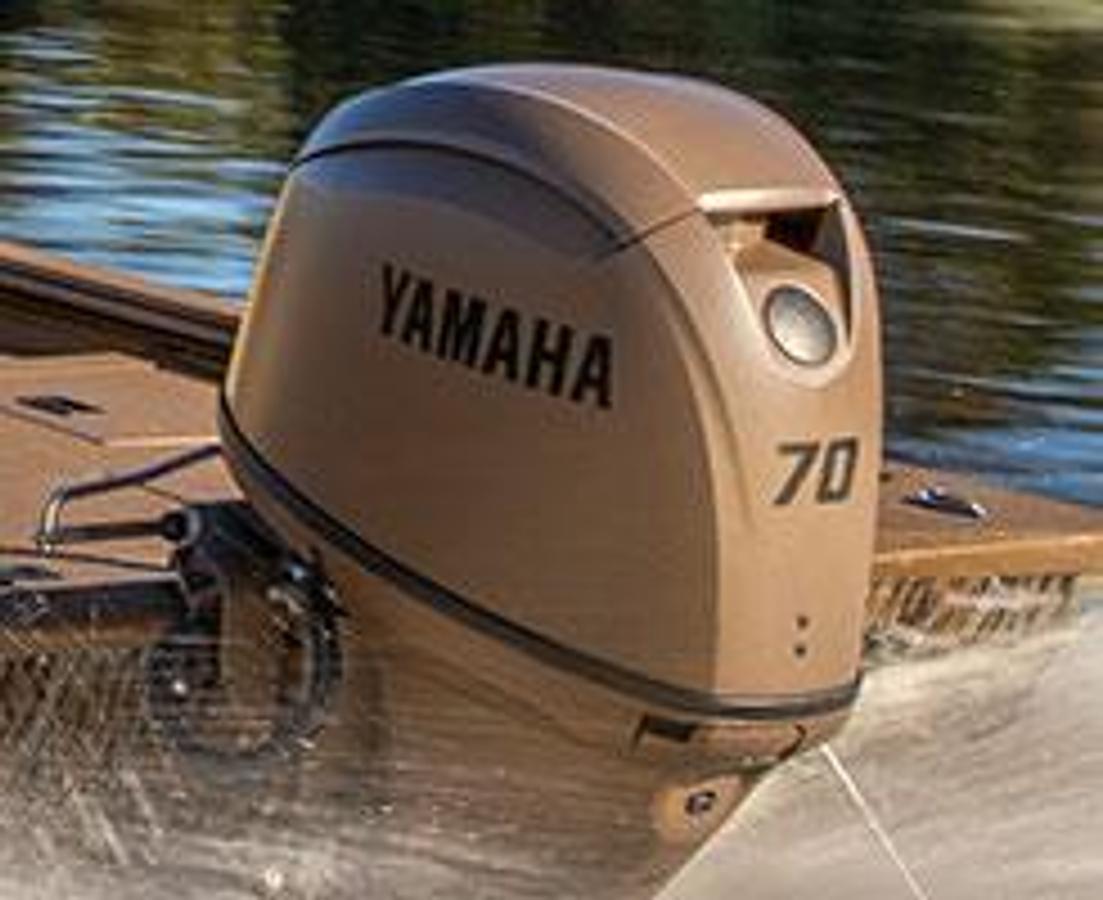

Our 1-liter 70-hp midrange features a two-piece upper case and 10 percent lighter pistons. Combined with its 16-valve SOHC design and 17 percent larger intakes, it’s one of the most responsive outboards on the water. Now available in matte brown, it’s also one of the stealthiest.

  • Only 253 pounds
  • Available in a 20” shaft
  • Powerful 15-amp alternator
  • Optional Variable Trolling RPM Switch (VTS®)
  • Available in signature Yamaha gray, pearlescent white, and NEW matte brown
    • 60 HP

    For inshore fishing performance in a few less horses, turn to Yamaha’s 1-liter 50-hp midrange. Inspired by the F70’s ingenious design, it combines light weight, exhilarating performance, and valuable efficiency. Depending on your gauge and control preference, the F50 allows you to access our Variable Trolling RPM Switch  (VTS®).

  • Only 247 pounds
  • Available in a 20” shaft
  • Powerful 16-amp alternator
  • Optional Variable Trolling RPM Switch (VTS®)
  • Available in a T60 High-Thrust model for heavy loads and an F60 Jet-Pump model for shallow water (F60 Jet model produces 40 horsepower at the jet pump nozzle)
  • Available in signature Yamaha gray, pearlescent white, and NEW matte brown

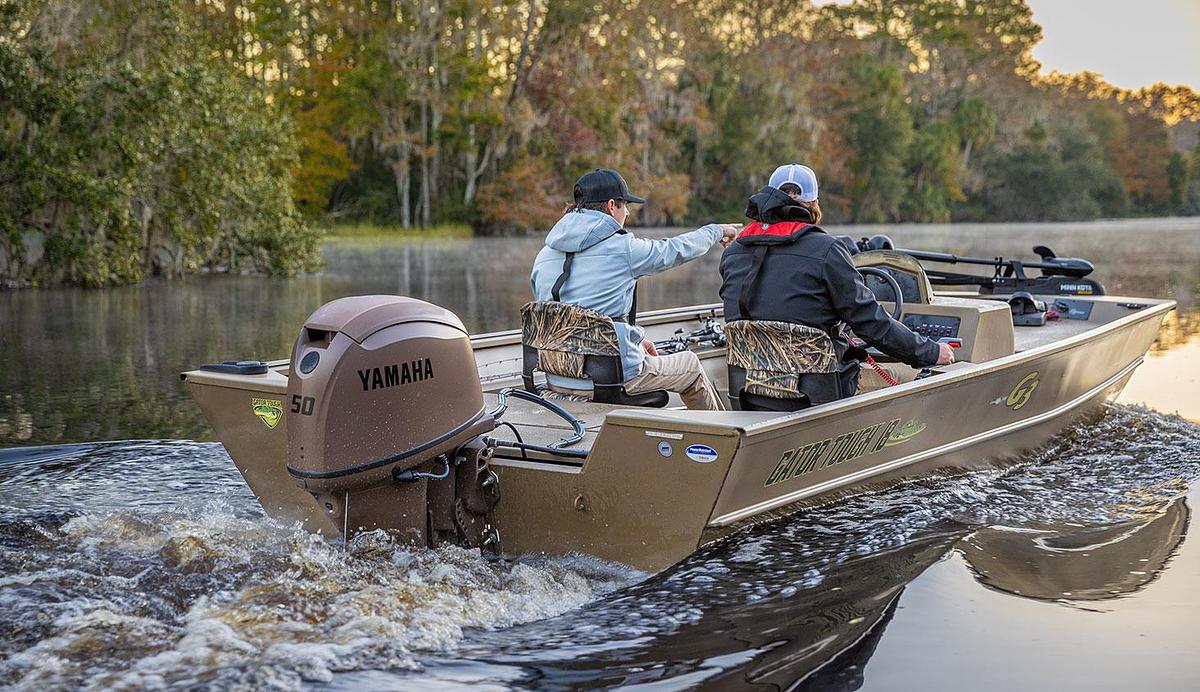

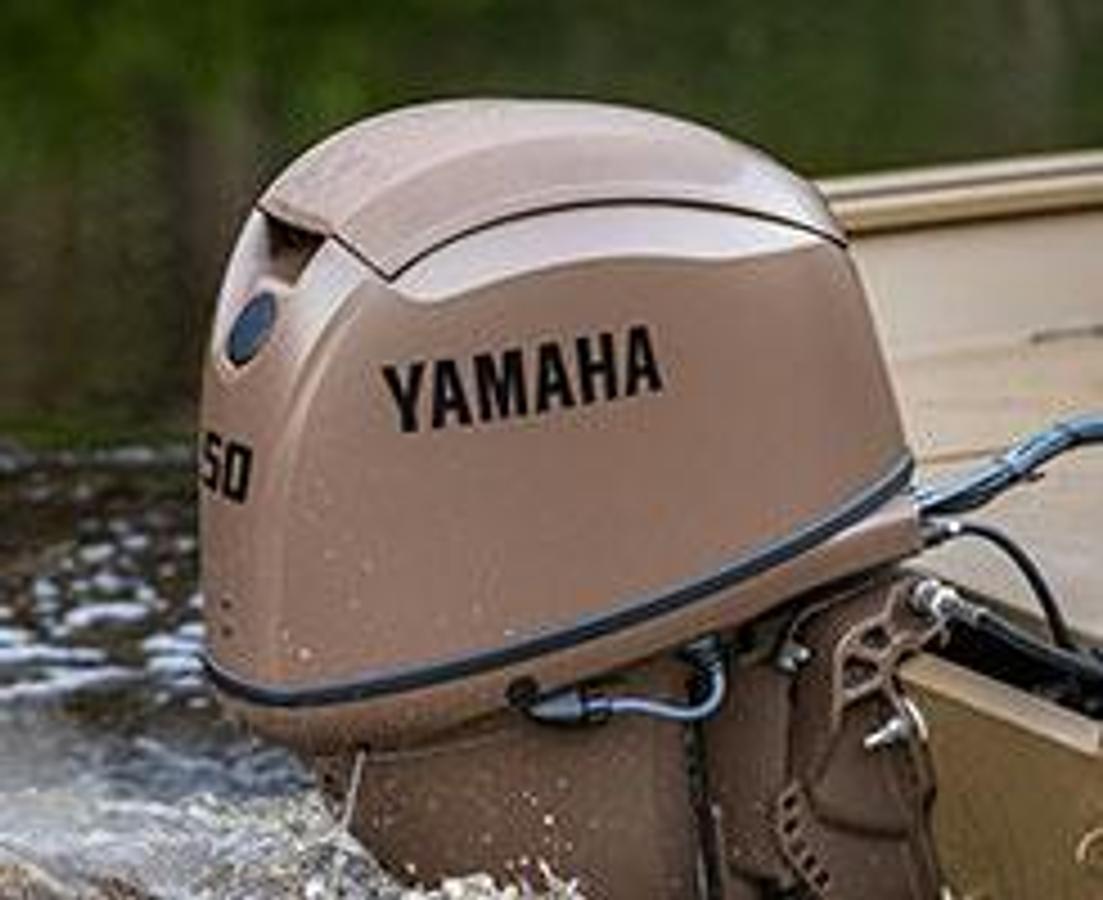

    • 50 HP
  • Only 247 pounds
  • Available in a 20” shaft
  • Powerful 16-amp alternator
  • Optional Variable Trolling RPM Switch (VTS®)
  • Available in a T50 High-Thrust model for pushing heavy loads
  • Available in signature Yamaha gray, pearlescent white, and NEW matte brown

    • Specifications

    ManufacturerYamaha
    Model70 / 60 / 50 hp
    ConditionNew
    Weight †70 HP: 114 kg (253 lbs) | 60 HP: 112 kg (247 lbs) | 50 HP: 112 kg (247 lbs)
    Full Throttle RPM Range70 HP: 5300 ~ 6300 rpm | 60 HP: 5000 ~ 6000 rpm | 50 HP: 5000 ~ 6000 rpm
    Fuel Induction System70 HP: EFI | 60 HP: EFI | 50 HP: EFI
    Recommended Engine Oil70 HP: Yamalube® 4M (See owner's manual) | 60 HP: Yamalube® 4M (See owner's manual) | 50 HP: Yamalube® 4M (See owner's manual)
    Engine Type70 HP: i4 | 60 HP: i4 | 50 HP: i4
    Displacement70 HP: 1.0L | 60 HP: 1.0L | 50 HP: 1.0L
    Bore x Stroke70 HP: 65 x 75mm (2.56 x 2.95 in.) | 60 HP: 65 x 75mm (2.56 x 2.95 in.) | 50 HP: 65 x 75mm (2.56 x 2.95 in.)
    Prop Shaft Horsepower70 HP: 70hp at 5800 rpm | 60 HP: 60hp at 5500rpm | 50 HP: 50hp at 5500 rpm
    Alternator Output at W.O.T.70 HP: 15 Amp | 60 HP: 16 amp | 50 HP: 16 amp
    Compression Ratio70 HP: 9.4:1 | 60 HP: 9.5:1 | 50 HP: 9.5:1
    Recommended Fuel70 HP: Octane 87 | 60 HP: Octane 87 | 50 HP: Octane 87
    Recommended Fuel Filtration70 HP: Yamaha 10-Micron Fuel/Water Separating Filter (external) | 60 HP: Yamaha 10-Micron Fuel/Water Separating Filter (external) | 50 HP: Yamaha 10-Micron Fuel/Water Separating Filter (external)
    C.A.R.B. Rating70 HP: 3-Star | 60 HP: 3-Star | 50 HP: 3-Star
    Exhaust70 HP: Through Propeller | 60 HP: Through Propeller | 50 HP: Through Propeller
    Intake70 HP: 16 | 60 HP: 8 | 50 HP: 8
    Ignition70 HP: TCI Microcomputer | 60 HP: TCI Microcomputer | 50 HP: TCI Microcomputer
    Spark Plug70 HP: LKR7E | 60 HP: DPR6EB-9 | 50 HP: DPR6EB-9
    Starting System70 HP: Electric | 60 HP: Electric | 50 HP: Electric
    Lubrication70 HP: Wet Sump | 60 HP: Wet Sump | 50 HP: Wet Sump
    Engine Oil Capacity70 HP: 2.1/1.9 | 60 HP: 2.1/1.9L | 50 HP: 2.1/1.9L
    Recommended Cooling70 HP: Thermostatic Control | 60 HP: Thermostatic Control | 50 HP: Thermostatic Control
    Ethanol Blend Limit70 HP: 10% Maximum | 60 HP: 10% Maximum | 50 HP: 10% Maximum
    Gear Ratio70 HP: 2.33:1 | 60 HP: 1.85:1 | 50 HP: 1.85:1
    Gear Shift70 HP: Forward, Neutral, Reverse | 60 HP: Forward, Neutral, Reverse | 50 HP: Forward, Neutral, Reverse
    Shaft Length70 HP: 20" | 60 HP: 20" | 50 HP: 20"
    Degree of Tilt70 HP: 65° | 60 HP: 69° | 50 HP: 69°
    Degree of Trim70 HP: -4° through +16° | 60 HP: -4° through +16° | 50 HP: -4° through +16°
    Mounting Centers70 HP: N/A | 60 HP: N/A | 50 HP: N/A
    Steering Angle (maximum)70 HP: 40° from center, either direction | 60 HP: 40° from center, either direction | 50 HP: 40° from center, either direction
    Warranty70 HP: Limited 3-year Pleasure, 3-year Government, 1-Year Commercial | 60 HP: Limited 3-year Pleasure, 3-year Government, 1-Year Commercial | 50 HP: Limited 3-year Pleasure, 3-year Government, 1-Year Commercial
