115 / 90 / 75 hp

or
Call 918-470-6790

Description

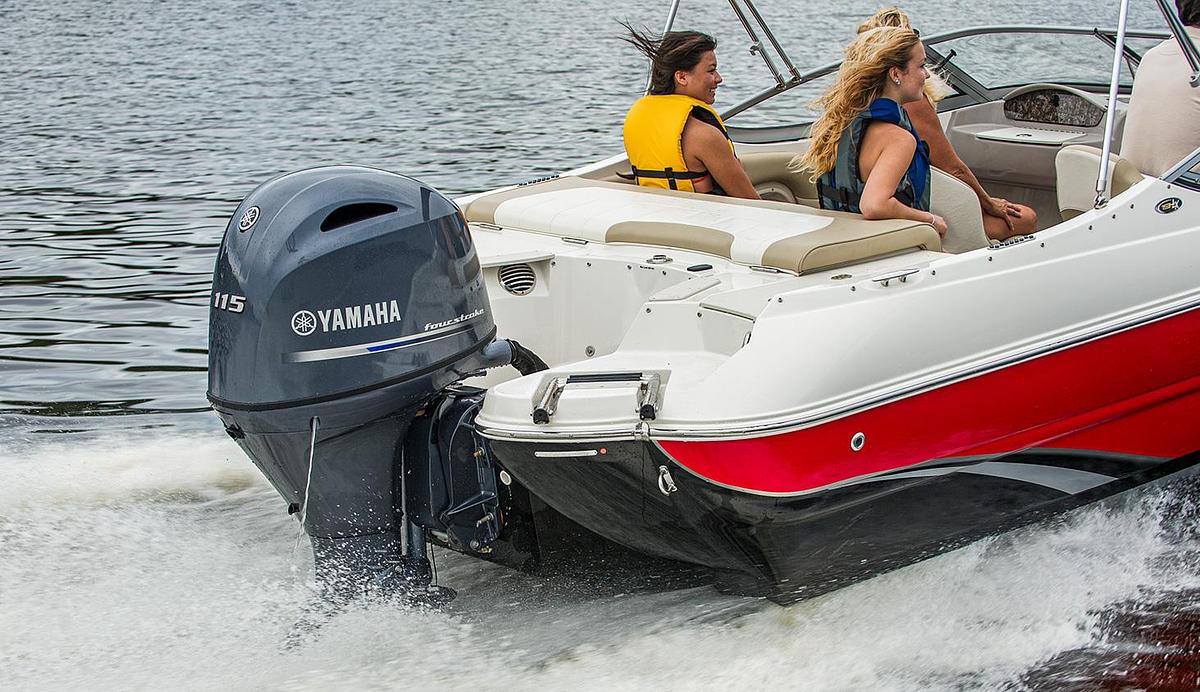

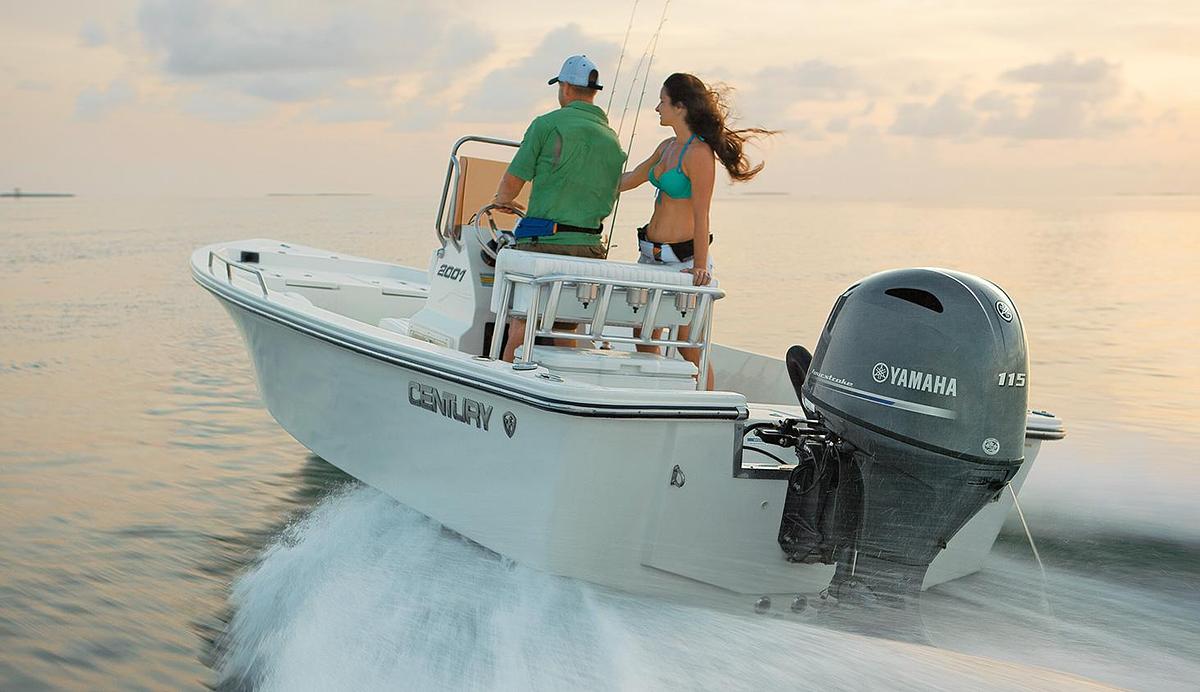

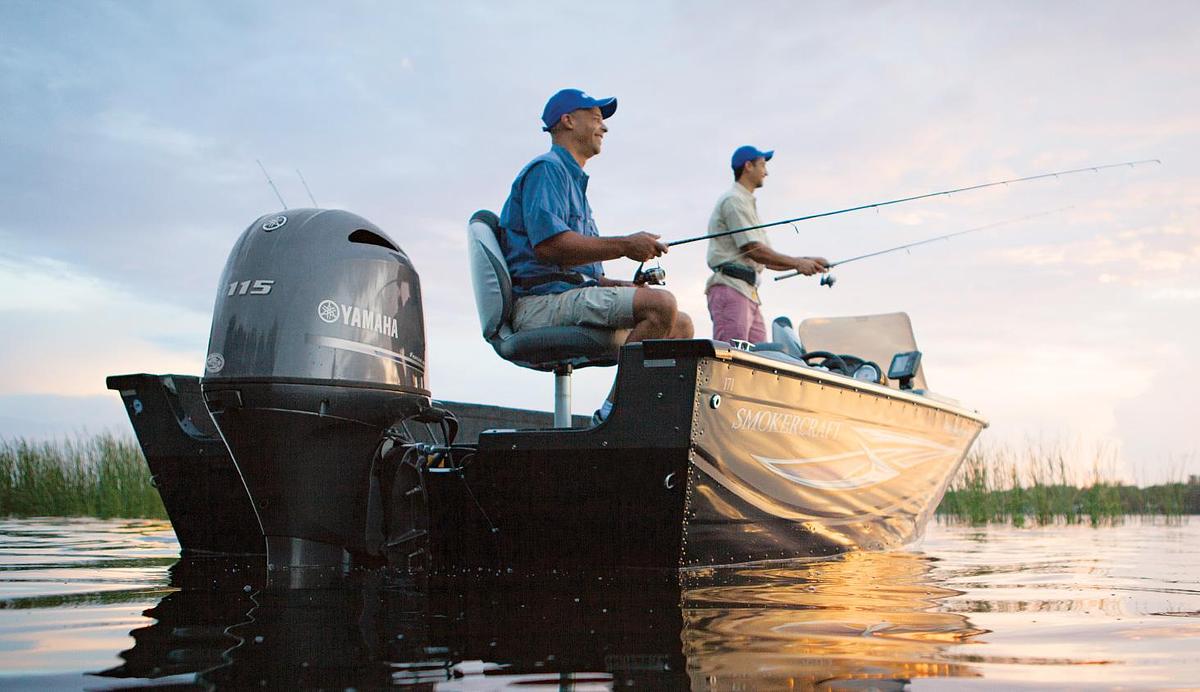

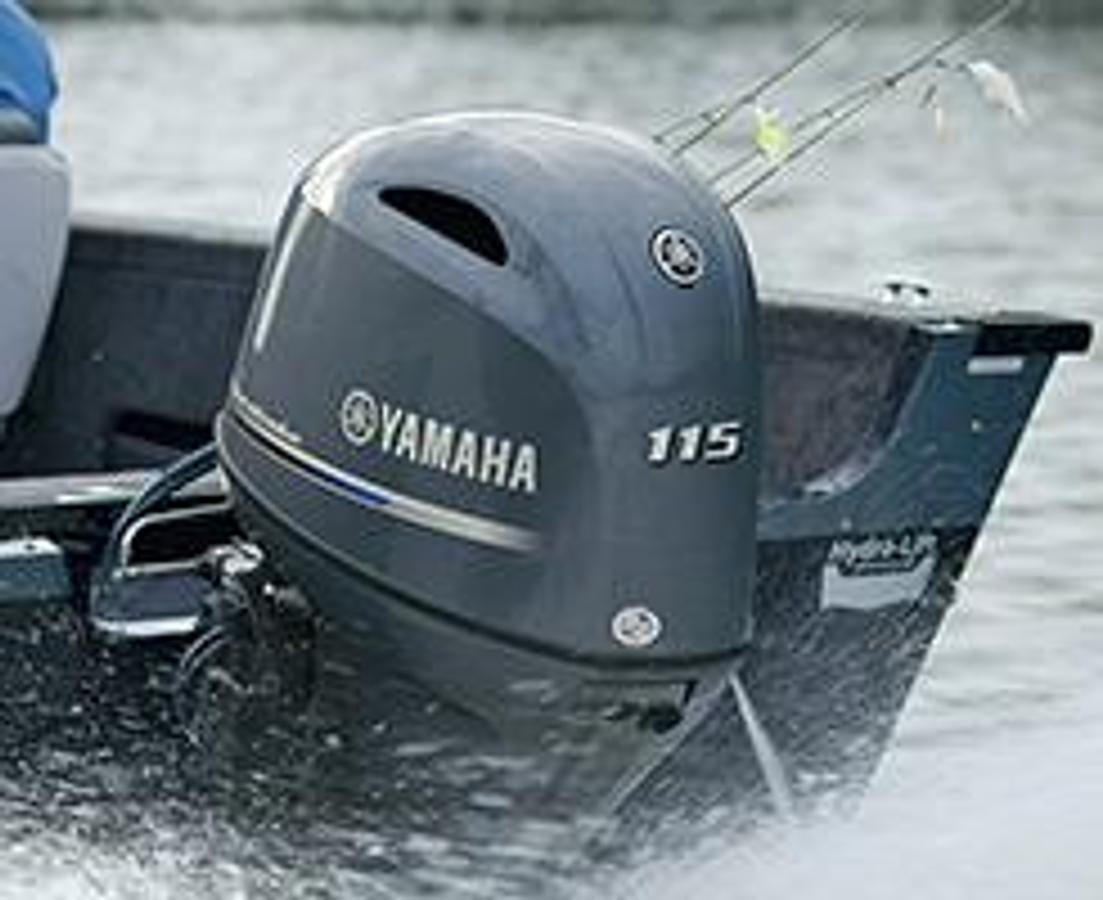

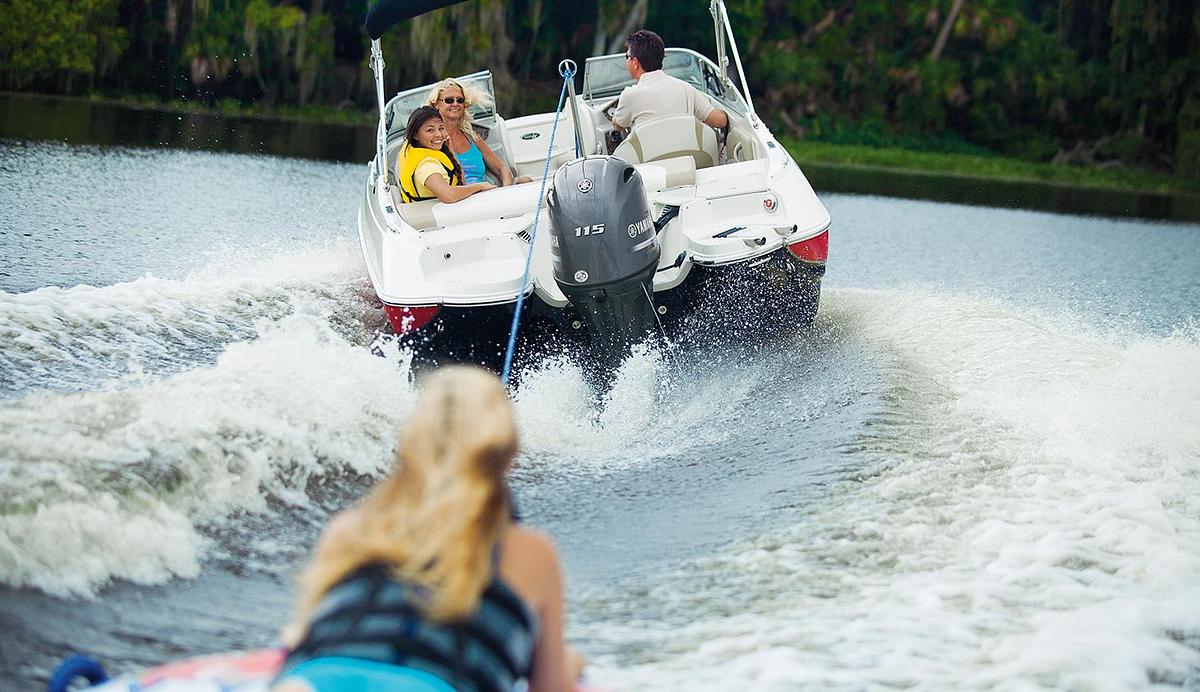

115 HP

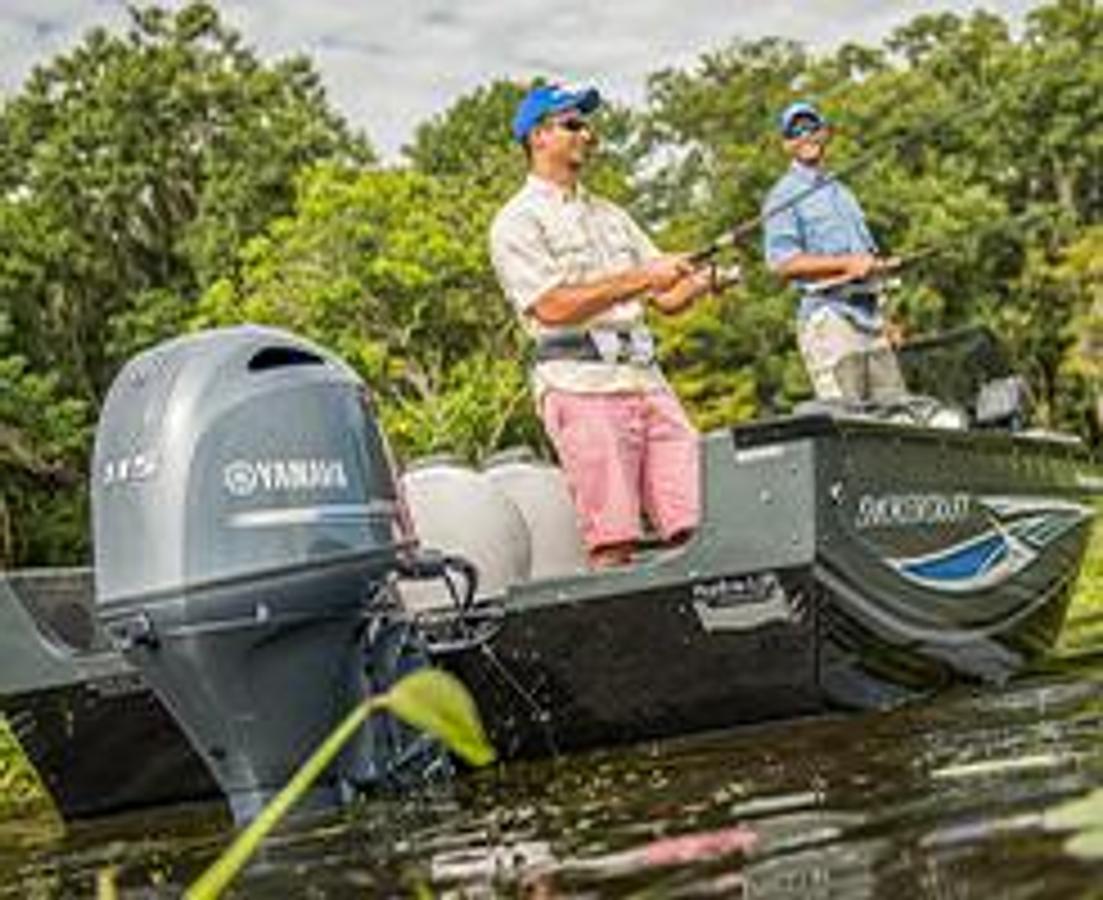

Our 1.8-liter Midrange F115 features a double overhead camshaft with four valves per cylinder. This increases volumetric efficiency and gives the F115 a competitive power to weight.

  • Only 377 pounds
  • Available in 20” or 25” shafts
  • Powerful 35-amp alternator
  • Optional Variable Trolling RPM via the Command Link® tachometer

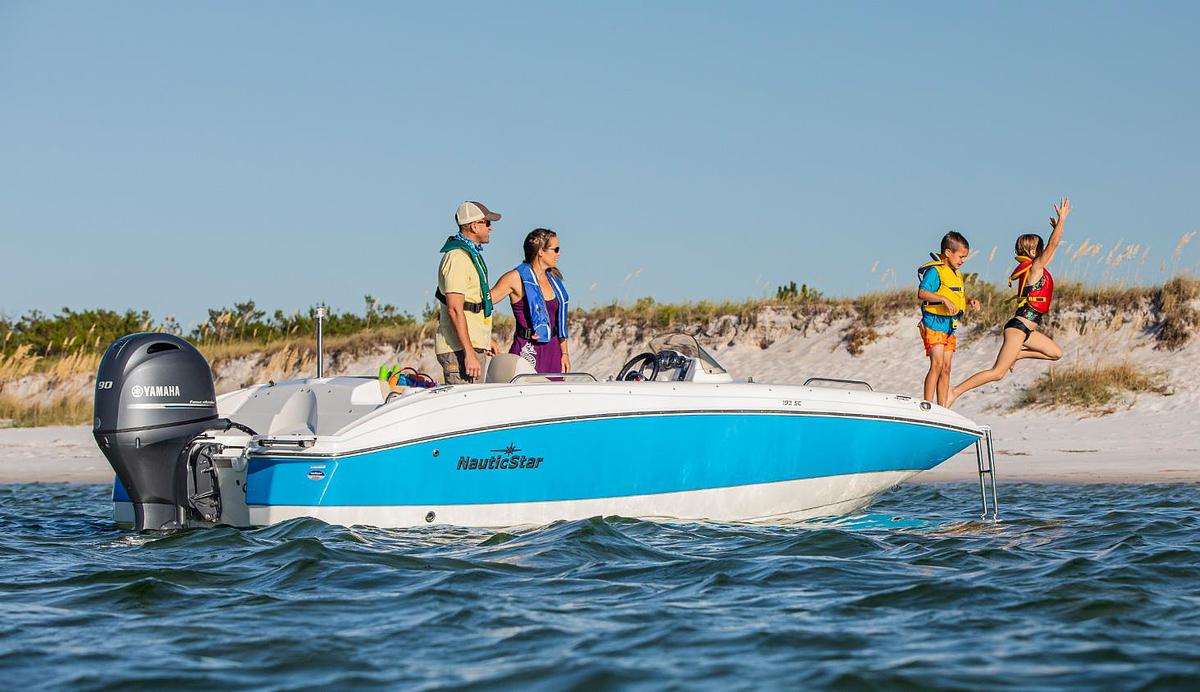

    • 90 HP

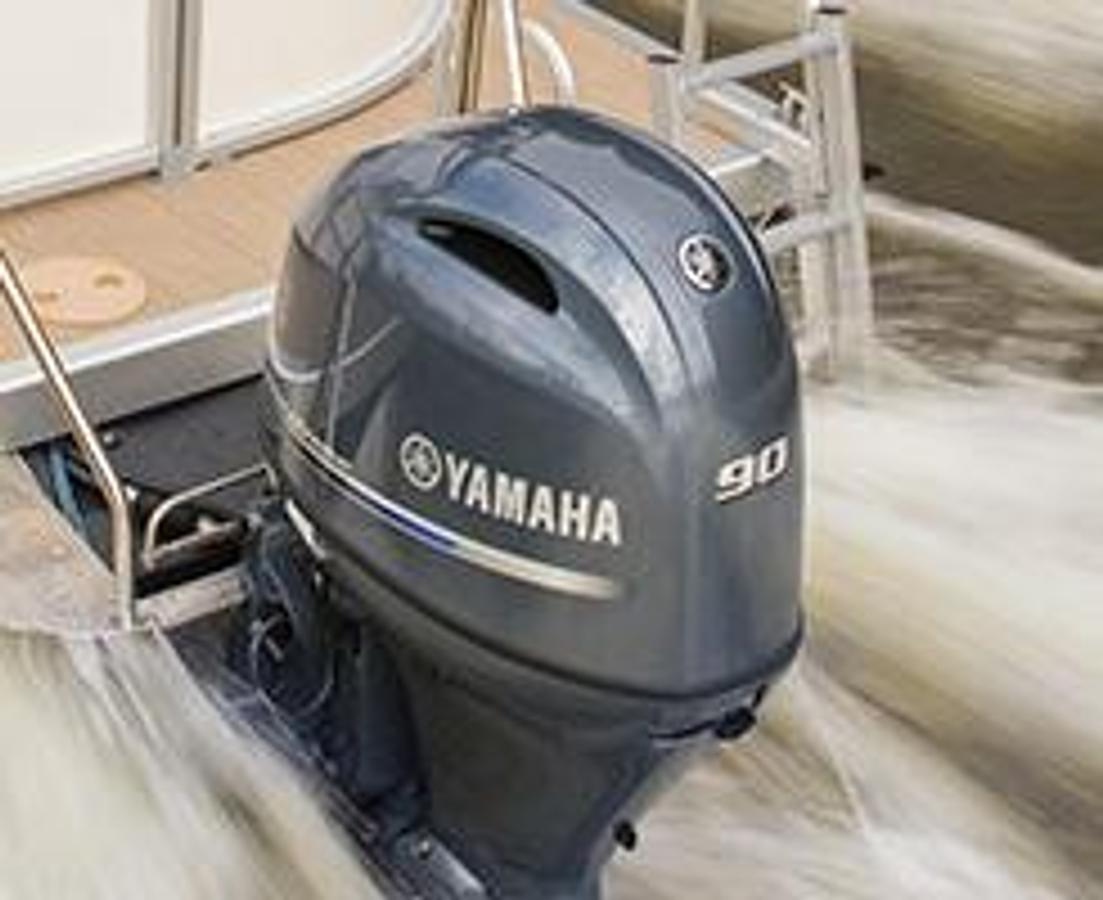

    The all-new 1.8-liter Midrange F90 features greater displacement and a single-overhead-camshaft design with four valves per cylinder. This boosts power and volumetric efficiency, streamlines design, and makes the F90 a leader in torque and acceleration.

  • Only 353 pounds
  • Available in 20” or 25” shafts
  • Powerful 35-amp alternator
  • Optional Variable Trolling RPM via the Command Link® tachometer

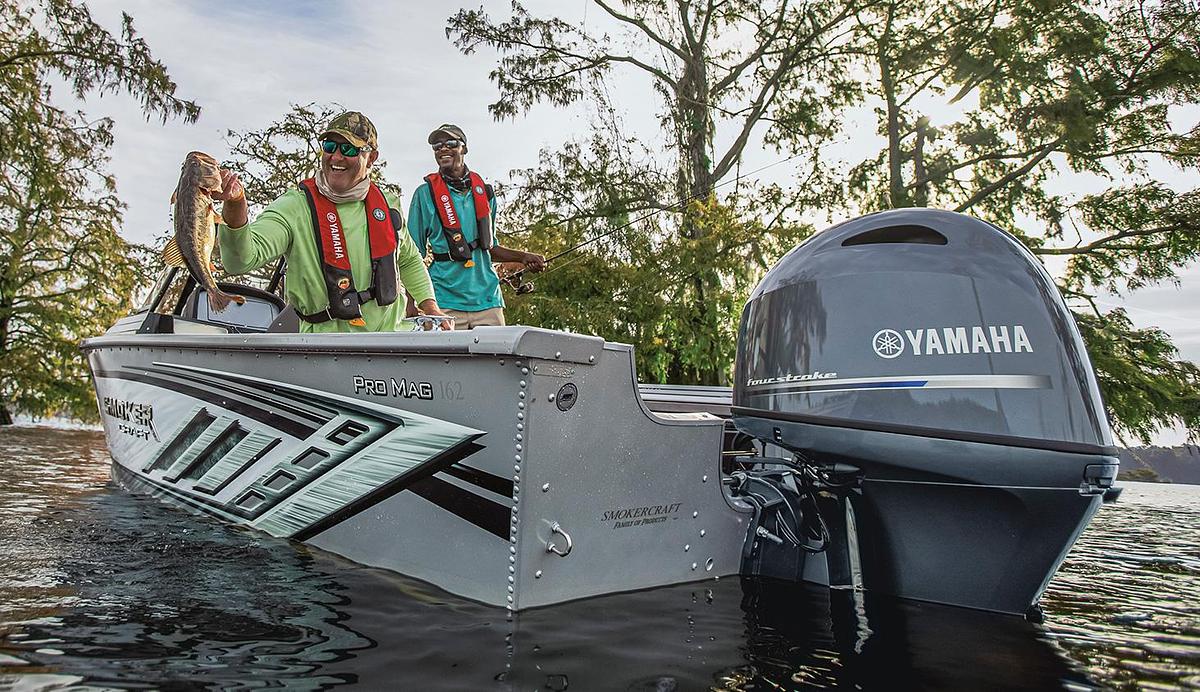

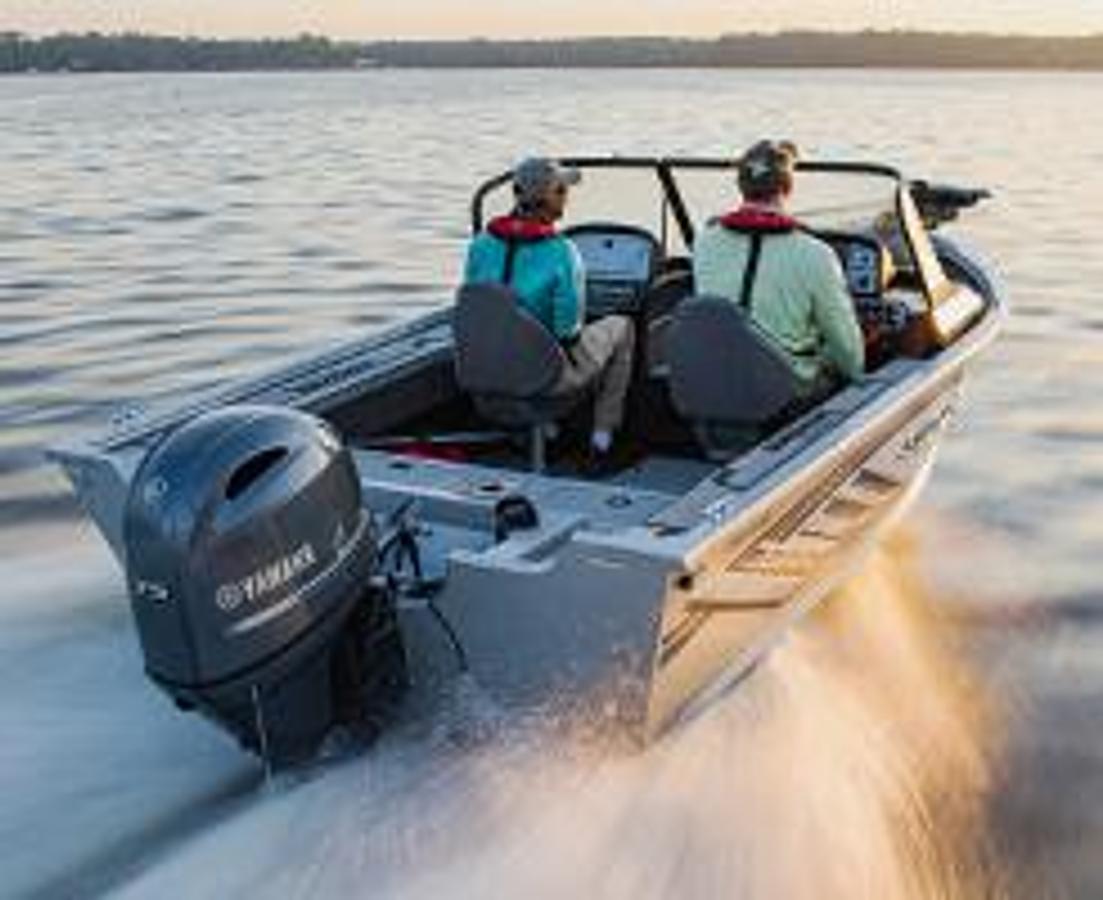

    • 75 HP

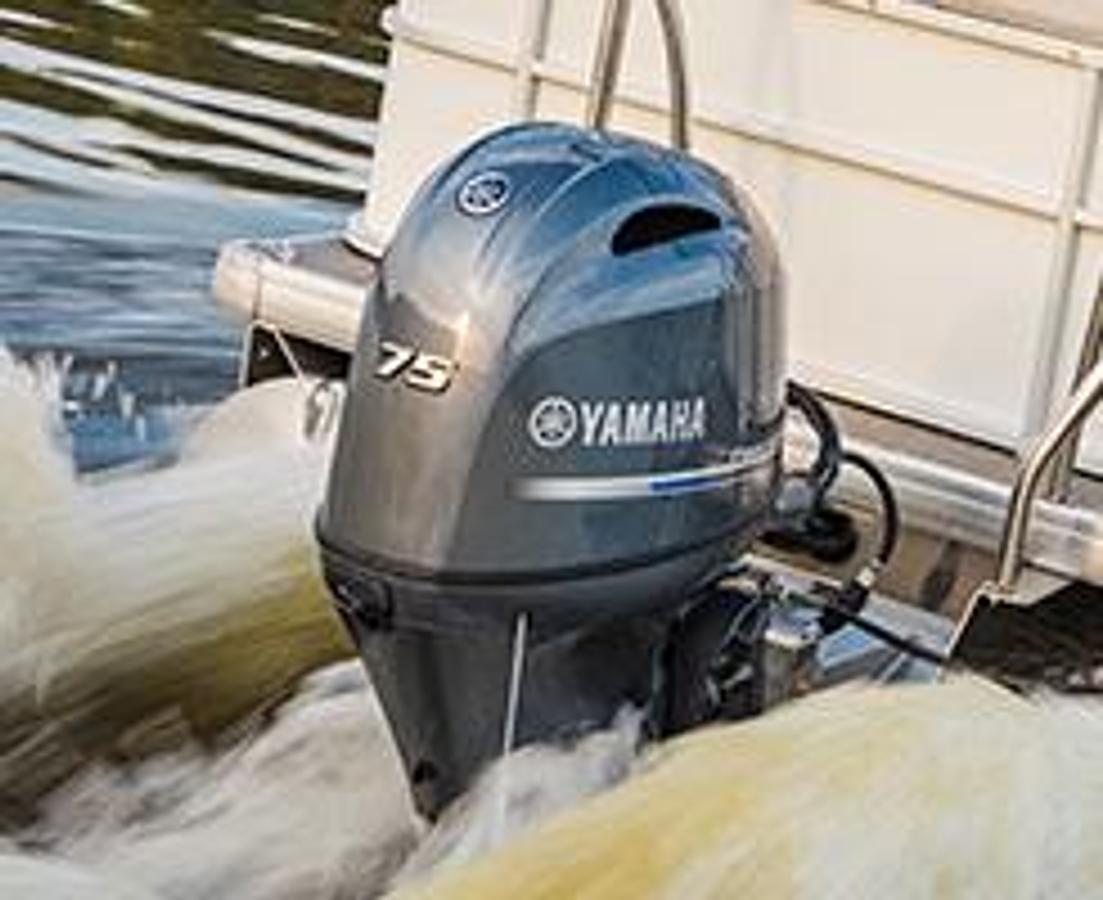

    The 1.8-liter Midrange F75 features a step up in displacement from its previous design. Still, its single-overhead-camshaft with four valves per cylinder keeps it compact and shaves off 13 pounds. Bigger power plus lighter weight equals one thrilling new outboard.

  • Only 353 pounds
  • 20” shaft
  • Powerful 35-amp alternator
  • Optional Variable Trolling RPM via gauge

    • Specifications

    ManufacturerYamaha
    Model115 / 90 / 75 hp
    ConditionNew
    Weight †115 HP: 171 kg (377 lbs) - 175 kg (386 lbs) | 90 HP: 160kg (353 lbs) - 164kg (362 lbs) | 75 HP: 160 kg (353 lbs)
    Full Throttle RPM Range115 HP: 5300 ~ 6300 | 90 HP: 5000 ~ 6000 | 75 HP: 5000 ~ 6000 rpm
    Fuel Induction System115 HP: EFI | 90 HP: EFI | 75 HP: EFI
    Recommended Engine Oil115 HP: Yamalube® 4M / (See owner's manual) | 90 HP: Yamalube® 4M (See owner's manual) | 75 HP: Yamalube® 4M (See owner's manual)
    Engine Type115 HP: Inline 4 | 90 HP: Inline 4 | 75 HP: Inline 4
    Displacement115 HP: 1.8L | 90 HP: 1.8L | 75 HP: 1.8L
    Bore x Stroke115 HP: 81 x 88.9mm |3.19 x 3.5in | 90 HP: 81 x 88.9mm (3.19 x 3.5 in) | 75 HP: 81 x 88.9mm (3.19 x 3.5in)
    Prop Shaft Horsepower115 HP: 115hp at 5500 rpm | 90 HP: 90hp @ 5500 rpm | 75 HP: 75hp at 5500 rpm
    Alternator Output at W.O.T.115 HP: 35 Amp | 90 HP: 35 Amp | 75 HP: 35 Amp
    Compression Ratio115 HP: 10.0:1 | 90 HP: 10.0:1 | 75 HP: 10.0:1
    Recommended Fuel115 HP: Octane 87 | 90 HP: Octane 87 | 75 HP: Octane 87
    Recommended Fuel Filtration115 HP: Yamaha 10-Micron Fuel / Water Separating Filter (external) | 90 HP: Yamaha 10-Micron Fuel/Water Separating Filter (external) | 75 HP: Yamaha 10-Micron Fuel/Water Separating Filter (external)
    C.A.R.B. Rating115 HP: 3-Star | 90 HP: 3-Star | 75 HP: 3-Star
    Exhaust115 HP: Through Propeller | 90 HP: Through Propeller | 75 HP: Through Propeller
    Intake115 HP: 16 | 90 HP: 16 | 75 HP: 16
    Ignition115 HP: TCI Microcomputer | 90 HP: TCI Microcomputer | 75 HP: TCI Microcomputer
    Spark Plug115 HP: LKR6E | 90 HP: LFR6A-11 | 75 HP: LFR6A-11
    Starting System115 HP: Electric | 90 HP: Electric | 75 HP: Electric
    Lubrication115 HP: Wet Sump | 90 HP: Wet Sump | 75 HP: Wet Sump
    Engine Oil Capacity115 HP: 3.2/3.0L | 90 HP: 3.2/3.0L | 75 HP: 3.2/3.0L
    Recommended Cooling115 HP: Thermostatic Control | 90 HP: Thermostatic Control | 75 HP: Thermostatic Control
    Ethanol Blend Limit115 HP: 10% Maximum | 90 HP: 10% Maximum | 75 HP: 10% Maximum
    Gear Ratio115 HP: 2.15:1 | 90 HP: 2.15:1 | 75 HP: 2.15:1
    Gear Shift115 HP: Forward, Neutral, Reverse | 90 HP: Forward, Neutral, Reverse | 75 HP: Forward, Neutral, Reverse
    Shaft Length115 HP: 20" - 25" | 90 HP: 20" - 25" | 75 HP: 20"
    Degree of Tilt115 HP: 70° | 90 HP: 70 | 75 HP: 70°
    Degree of Trim115 HP: -4° through +16° | 90 HP: -4° through +66° | 75 HP: -4° through +16°
    Mounting Centers115 HP: 26" | 90 HP: 26" | 75 HP: N/A
    Steering Angle (maximum)115 HP: 35° from center, either direction | 90 HP: 35° from center, either direction | 75 HP: 35° from center, either direction
    Warranty115 HP: Limited 3 Year Limited Pleasure Boat - 1 Year Limited Commercial | 90 HP: Limited 3-year Pleasure, 3-year Government, 1-Year Commercial | 75 HP: Limited 3-year Pleasure, 3-year Government, 1-Year Commercial
