In-line 4 200 / 150 hp

or
Call 918-470-6790

Description

200 HP

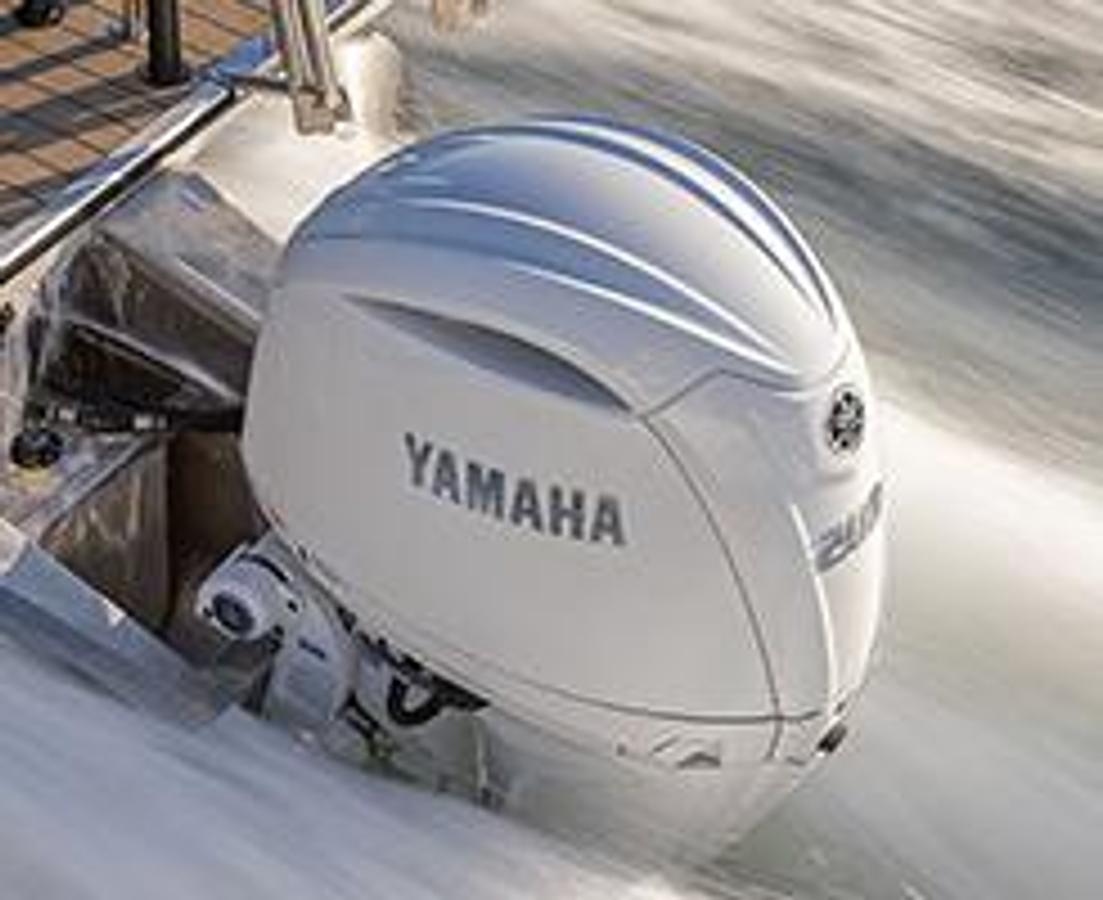

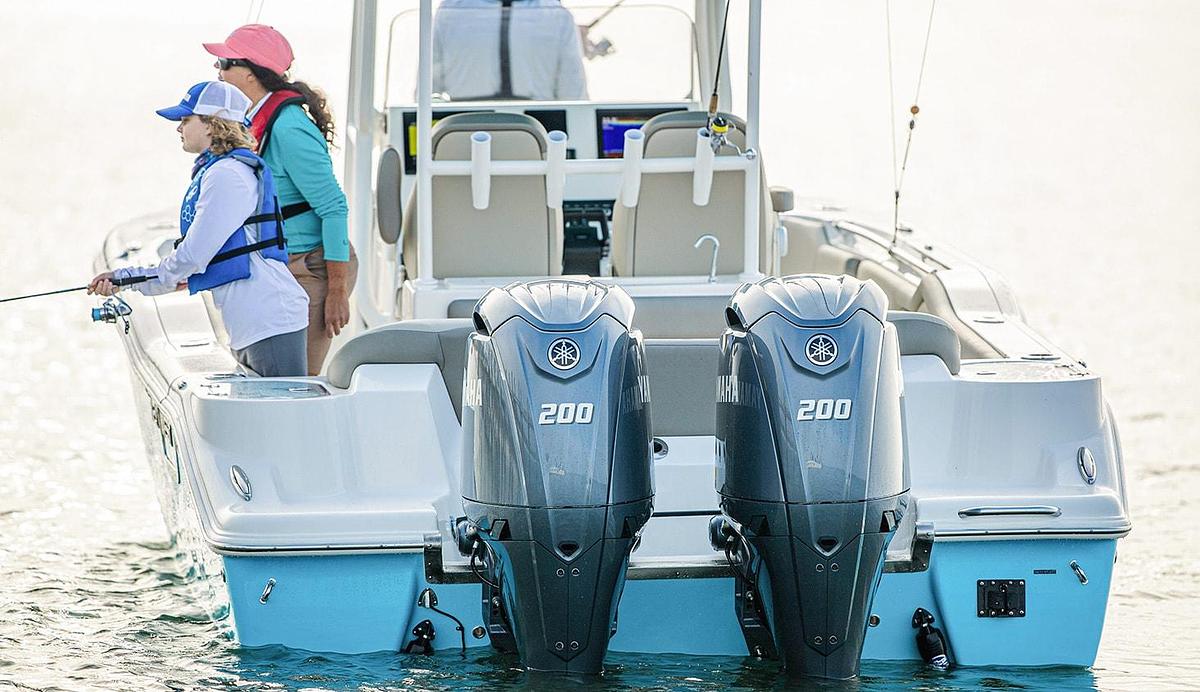

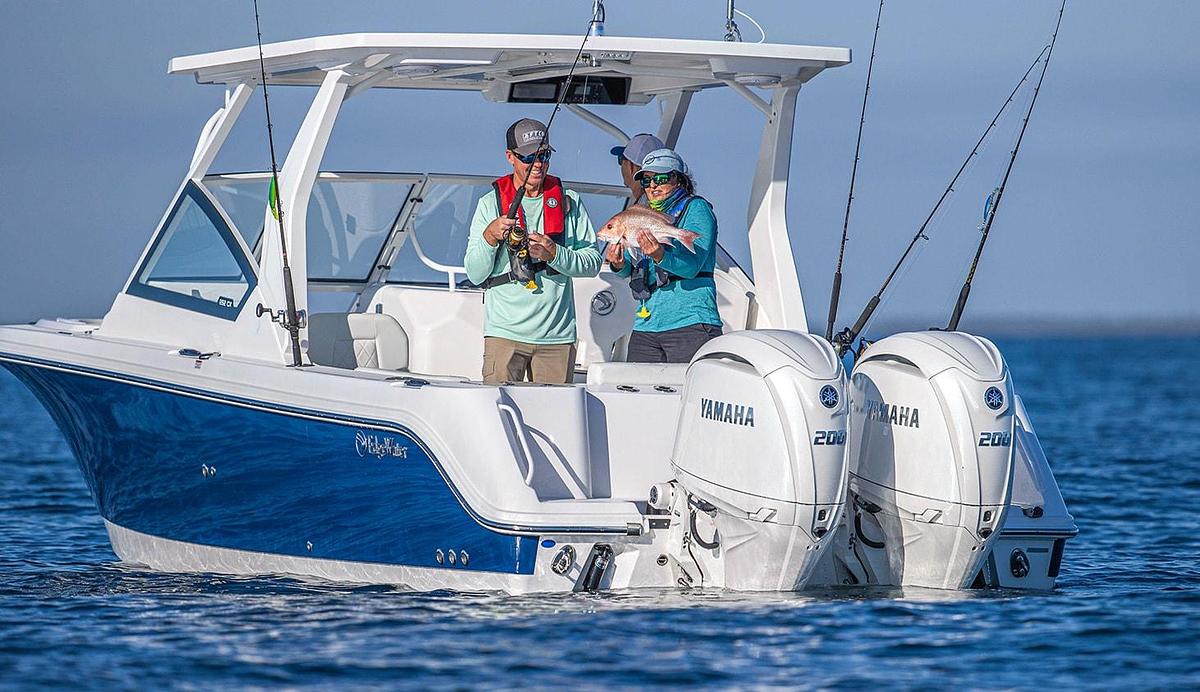

With impressive power-to-weight, volumetric efficiency, and integrated steering, this In-Line Four is the perfect, lightweight 200-hp solution for small- to medium-size boats. Its unique Variable Camshaft Timing (VCT) improves intake and exhaust efficiency and boosts torque throughout the rev range.

  • Comes with integrated electro-hydraulic steering for digital models and integrated hydraulic steering for mechanical models
  • Runs on economical 89 octane
  • Only 516 pounds (20" mechanical model)
  • Available in 20" and 25” shaft options (20" mechanical models only)
  • 50-amp alternator provides plenty of power for onboard electronics
  • Digital F200 available in signature Yamaha gray, pearlescent white, and classic white
  • Mechanical F200 available in signature Yamaha gray

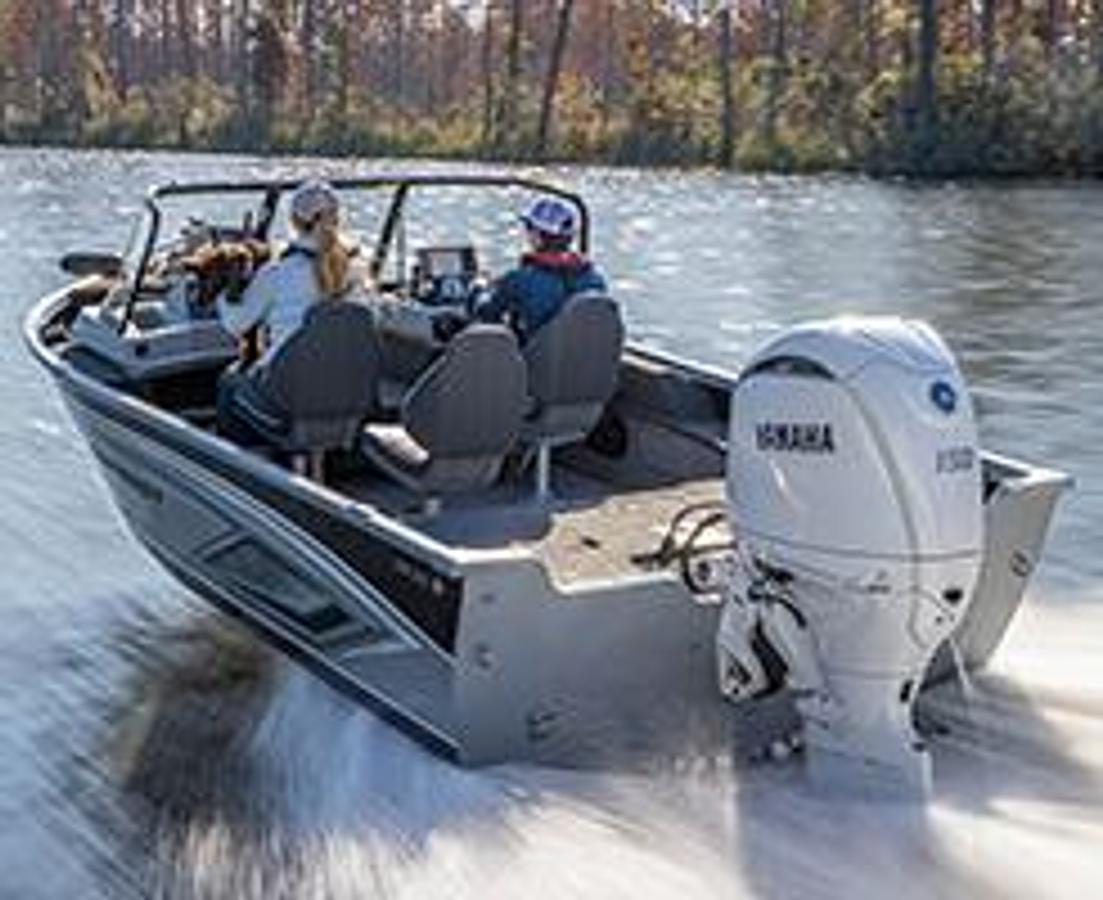

    • 150 HP

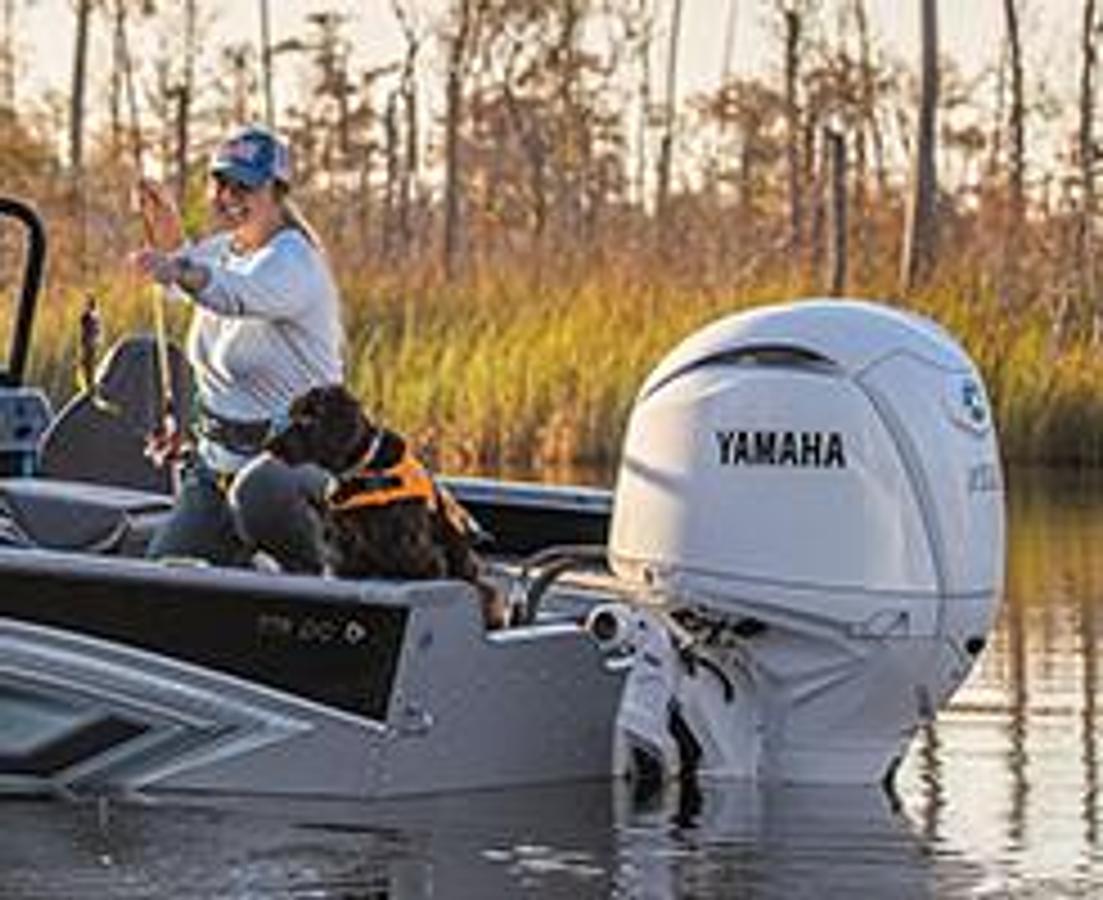

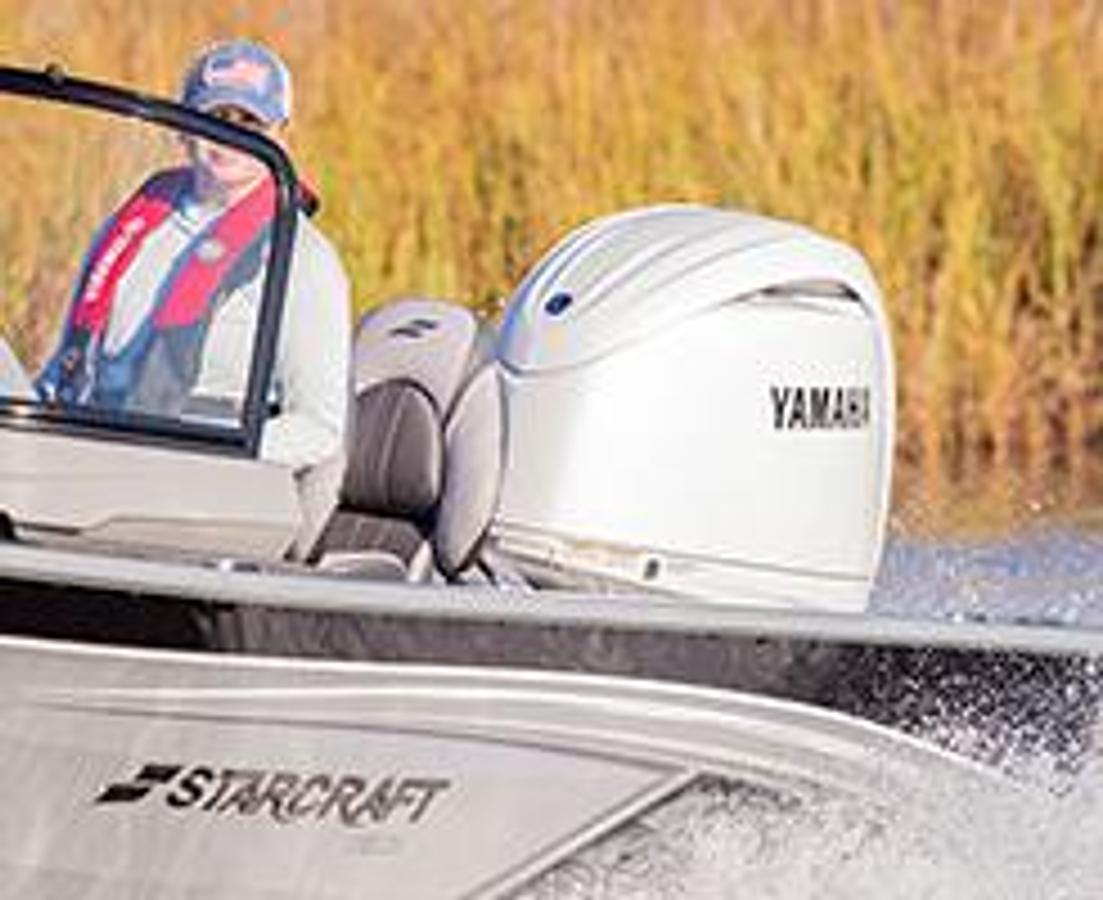

    The In-Line Four 150 is one that started it all and it’s more popular than ever. Powerful, light, and compact, it’s mechanical or digital compatible and uses integrated steering, making it more streamlined and responsive than ever before.

  • Comes with integrated electro-hydraulic steering for digital models and integrated hydraulic steering for mechanical models
  • Only 509 pounds (20” shaft DEC model)
  • Available in 20” or 25” shafts (20" mechanical models only)
  • Powerful 50-amp alternator (2.8-liter digital) or 35-amp alternator (2.7-liter mechanical)
  • Digital F150 available in signature Yamaha gray, pearlescent white, and classic white
  • Mechanical F150 available in signature Yamaha gray

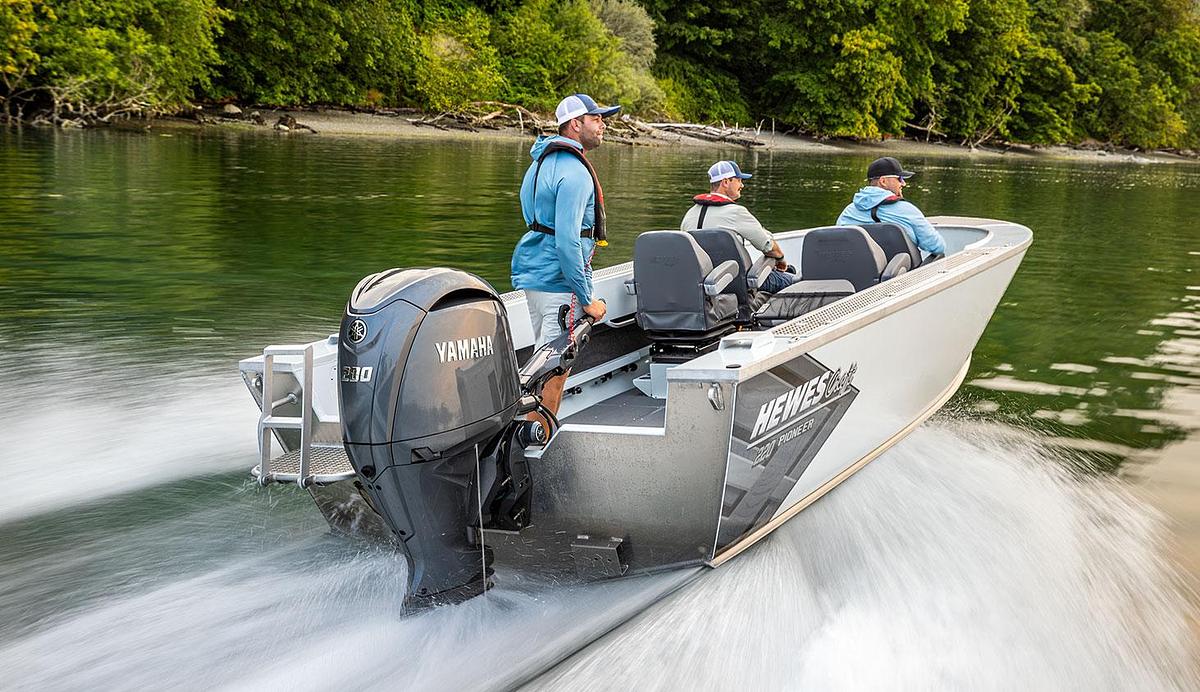

    • Tiller 200 HP

    The only thing an angler should be arm wrestling is the walleye. Our new Power Assisted Tiller 2.8L F200 makes steering 200 horses on a deep-V through chop a breeze. Available in standard and eight-inch tiller lengths, it can accommodate almost any boat configuration.

  • Hydraulic assisted tiller steering
  • Runs on economical 89 octane
  • Only 568 pounds
  • 25” shaft
  • 50-amp alternator provides plenty of power for onboard electronics
  • Available in signature Yamaha gray
    • Tiller 150 HP

    The water may be choppy, and the fish may be fighters, but at least the steering will be easy with the Power-Assisted 2.8L In-Line Four 150. Available in standard and eight-inch tiller lengths, it can accommodate almost any boat configuration.

  • Hydraulic assisted tiller steering
  • Runs on economical 89 octane
  • Only 566 pounds
  • 25” shaft
  • 50-amp alternator provides plenty of power for onboard electronics
  • Available in signature Yamaha gray

    • Specifications

    ManufacturerYamaha
    ModelIn-line 4 200 / 150 hp
    ConditionNew
    Weight †200 HP: Mechanical - 234 kg (516 lbs) / DEC - 238 kg (525 lb) | 150 HP: 20” Mechanical 231kg (509 lbs) 20” DEC 237kg (522 lbs) | Tiller 200 HP: 258 kg (568 lbs) | Tiller 150 HP: 257 kg (566 lbs)
    Full Throttle RPM Range200 HP: 5000 ~ 6000 rpm | 150 HP: 5000 ~ 6000 rpm | Tiller 200 HP: 5000 - 6000 RPM | Tiller 150 HP: 5000 - 6000 RPM
    Fuel Induction System200 HP: EFI | 150 HP: EFI | Tiller 200 HP: EFI | Tiller 150 HP: EFI
    Recommended Engine Oil200 HP: Yamalube® 4M (See owner's manual) | 150 HP: Yamalube® 4M (See owner's manual) | Tiller 200 HP: Yamalube® 4M (See owner's manual) | Tiller 150 HP: Yamalube® 4M (See owner's manual)
    Engine Type200 HP: Inline 4 | 150 HP: Inline 4 | Tiller 200 HP: Inline 4 | Tiller 150 HP: Inline 4
    Displacement200 HP: 2.8L | 150 HP: 2.7L (Mechanical) / 2.8L (DEC) | Tiller 200 HP: 2.8L | Tiller 150 HP: 2.8L
    Bore x Stroke200 HP: 96 x 96.2mm (3.78 x 3.79in) | 150 HP: 94 x 96.2 (3.70 x 3.79in) / 96 x 96.2mm (3.78 x 3.79in) | Tiller 200 HP: 96 x 96.2mm (3.78 x 3.79in) | Tiller 150 HP: 94 × 96.2 (3.70 x 3.79in) / 96 × 96.2mm (3.78 × 3.79in)
    Prop Shaft Horsepower200 HP: 200hp @ 5500 rpm | 150 HP: 150hp @ 5500 rpm | Tiller 200 HP: 200hp @ 5500 rpm | Tiller 150 HP: 150hp @ 5500 rpm
    Alternator Output at W.O.T.200 HP: 50 Amp | 150 HP: 35 / 50 Amp | Tiller 200 HP: 50 Amp | Tiller 150 HP: 50 Amp
    Compression Ratio200 HP: 10.3:1 | 150 HP: 9.0:1 / 10.3:1 | Tiller 200 HP: 10.3:1 | Tiller 150 HP: 9.0:1 / 10.3:1
    Recommended Fuel200 HP: Octane 89 | 150 HP: Octane 87 / Octane 89 | Tiller 200 HP: Octane 89 | Tiller 150 HP: Octane 87 / Octane 89
    Recommended Fuel Filtration200 HP: Yamaha 10 Micron Fuel/Water Separating Filter (external) | 150 HP: Yamaha 10 Micron Fuel/Water Separating Filter (external) | Tiller 200 HP: Yamaha 10 Micron Fuel/Water Separating Filter (external) | Tiller 150 HP: Yamaha 10 Micron Fuel/Water Separating Filter (external)
    C.A.R.B. Rating200 HP: 3-Star | 150 HP: 3-Star | Tiller 200 HP: 3-Star | Tiller 150 HP: 3-Star
    Exhaust200 HP: Through Propeller | 150 HP: Through Propeller | Tiller 200 HP: Through Propeller | Tiller 150 HP: Through Propeller
    Intake200 HP: 16-valve | 150 HP: 16 | Tiller 200 HP: 16-valve | Tiller 150 HP: 16-valve
    Ignition200 HP: TCI Microcomputer | 150 HP: TCI Microcomputer | Tiller 150 HP: TCI Microcomputer
    Spark Plug200 HP: NGK-LFR6A-11 | 150 HP: NGK-LFR6A-11 / LFR5A-11 | Tiller 200 HP: NGK-LFR6A-11 | Tiller 150 HP: NGK-LFR6A-11 / LFR5A-11
    Starting System200 HP: Electric | 150 HP: Electric | Tiller 200 HP: Electric | Tiller 150 HP: Electric
    Lubrication200 HP: Wet Sump | 150 HP: Wet Sump | Tiller 200 HP: Wet Sump | Tiller 150 HP: Wet Sump
    Engine Oil Capacity200 HP: 4.5L/4.3L w/without filter | 150 HP: 4.5L / 4.3L | Tiller 200 HP: 4.5L/4.3L w/without filter | Tiller 150 HP: 4.5L / 4.3
    Recommended Cooling200 HP: Thermostatic Control | 150 HP: Thermostatic Control | Tiller 200 HP: Thermostatic Control | Tiller 150 HP: Thermostatic Control
    Ethanol Blend Limit200 HP: 10% Maximum | 150 HP: 10% Maximum | Tiller 200 HP: 10% Maximum | Tiller 150 HP: 10% Maximum
    Gear Ratio200 HP: 1.86:1 | 150 HP: 2.00:1 | Tiller 200 HP: 1.86:1 | Tiller 150 HP: 2.00:1
    Gear Shift200 HP: Forward, Neutral, Reverse | 150 HP: F-N-R | Tiller 200 HP: Forward, Neutral, Reverse | Tiller 150 HP: Forward, Neutral, Reverse
    Shaft Length200 HP: 20" / 25" | 150 HP: 20" / 25" | Tiller 200 HP: 25" | Tiller 150 HP: 25"
    Degree of Tilt200 HP: 70° | 150 HP: 70° | Tiller 200 HP: 70° | Tiller 150 HP: 70°
    Degree of Trim200 HP: -4° through +16° | 150 HP: -4° through +16° | Tiller 200 HP: -4° through +16° | Tiller 150 HP: -4° through +16°
    Mounting Centers200 HP: 26" | 150 HP: 26" | Tiller 200 HP: 26" | Tiller 150 HP: 26"
    Steering Angle (maximum)200 HP: 30° from center, either direction | 150 HP: 30° from center, either direction | Tiller 200 HP: 30° from center, either direction | Tiller 150 HP: 30° from center, either direction
    Warranty200 HP: Limited 3 Year Limited Pleasure Boat - 1 Year Limited Commercial | 150 HP: Limited 3 Year Limited Pleasure Boat - 1 Year Limited Commercial | Tiller 200 HP: Limited 3 Year Limited Pleasure Boat - 1 Year Limited Commercial | Tiller 150 HP: Limited 3 Year Limited Pleasure Boat - 1 Year Limited Commercial
    SteeringTiller 200 HP: Steering Assisted Tiller Handle | Tiller 150 HP: Steering Assisted Tiller Handle
