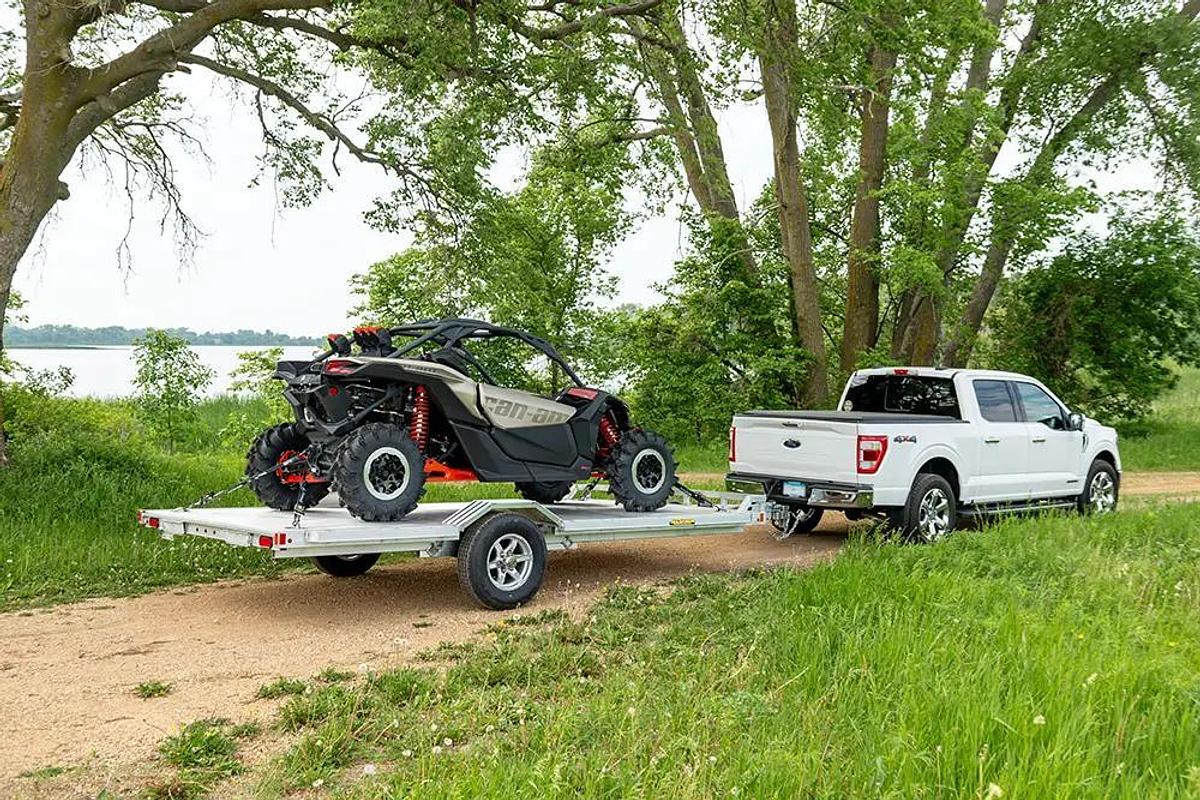

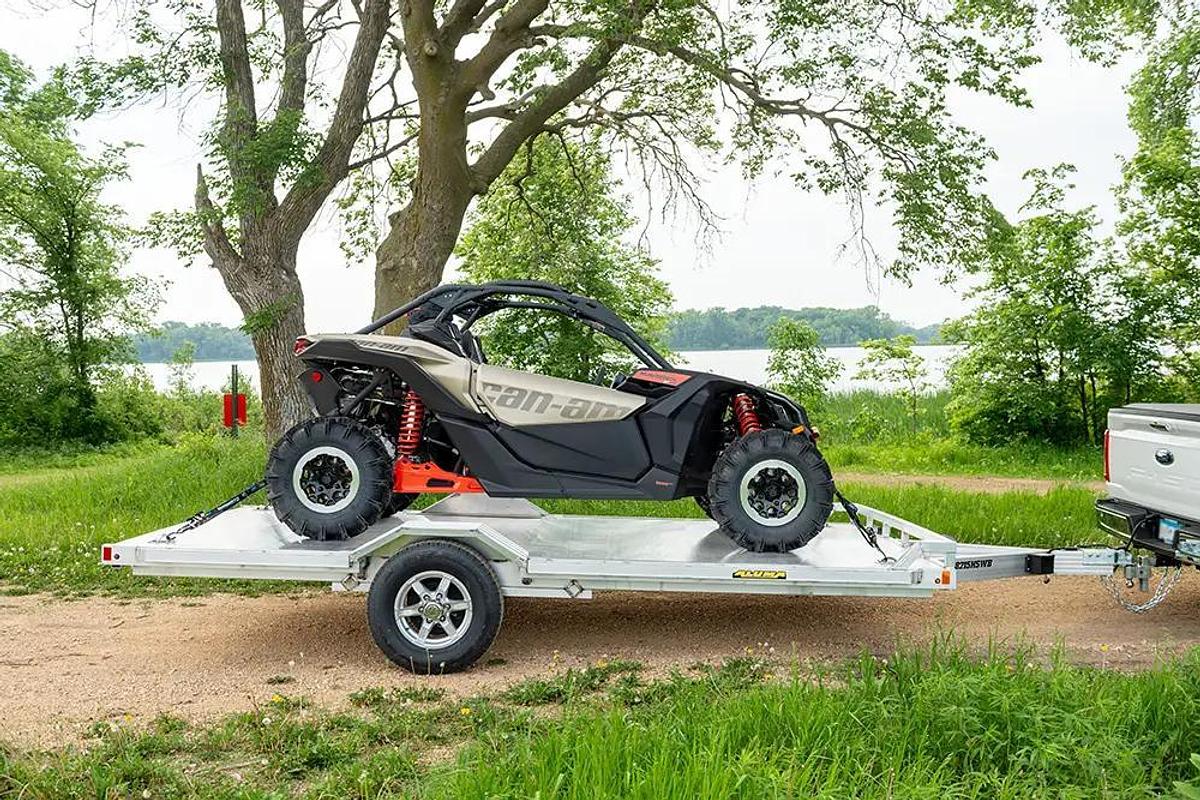

WB15H Utility Trailer
Description
Equipment DetailsStandard
- 1-5200# Rubber torsion axle – Easy lube hubs
- Electric brakes, breakaway kit
- ST225/75R15 Radial tires
- Aluminum wheels, 6-5.5 BHP
- Drive-over aluminum fenders
- Extruded aluminum floor
- Front retaining rail
- A-Framed aluminum tongue, 54″ long with 2″ coupler

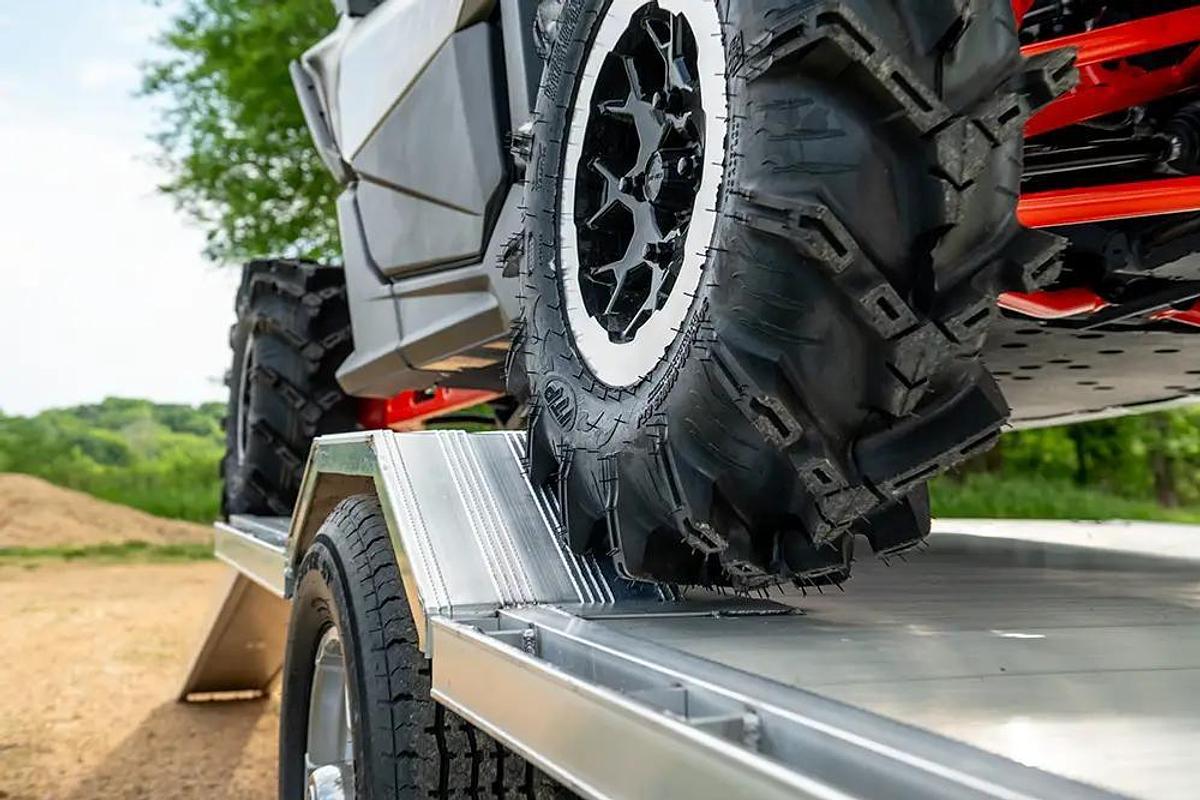

- 2) 7′ Aluminum ramps with storage underneath
- Rub rail welded to stake pockets on sides
- 4) Recessed tie rings, SS 5000#
- Tongue Handle
- Receptacle Holder
- Swivel tongue jack, 1500# capacity
- LED Lighting package, safety chains
- 2 Front Load Lights
- Overall width = 101.5″
- Overall length = 241″
- 8200-SBT Split bi-fold tailgate, no ramps
- 20-0001925 WB Rock Guard Assembly
- 20-0001978 WB Air Dam Assembly
- 50-0004765 U-Channel 4.0625″ x 1.8125″ x .25″ x 2.50″ – Lg. Stake Pocket
- 60-0000650 2000# RTD Stainless Steel Small
- 60-0000646 5000# RTD Stainless Steel Large
- 20-0000779 Stabilizer Leg Package-10 Series
- 20-0000271 Storage Box Package 60 Deg. 82 SERIES
- 60-0001494 15″ Tire, Silver Aluminum 6 Bolt
- 20-0000005 6″ Vertical Spare Tire Carrier, 6-Bolt
- 20-0001473 Tire Carrier Flat Mount 6 Bolt
Specifications
| Manufacturer | Aluma |
| Model | WB15H Utility |
| Condition | New |
| Models | WB15H-S-EL-DOF-R-RR-RTD (Ramps) |
| Weight | 1,110# |
| Bed Size | 96.875″ x 179.5″ |
| Tires | 15″ |
