EX-7712H Trailer

or
Call 918-470-6790

Description

Equipment DetailsStandard
  • 3500# Rubber torsion axle (rated at 2990#) – No brakes – Easy lube hubs
  • ST205/75R14 LRC radial tires (1760# cap/tire)
  • Aluminum wheels, 5-4.5 BHP
  • Aluminum fenders
  • Extruded aluminum floor
  • 8.5″ Front & side retaining rails

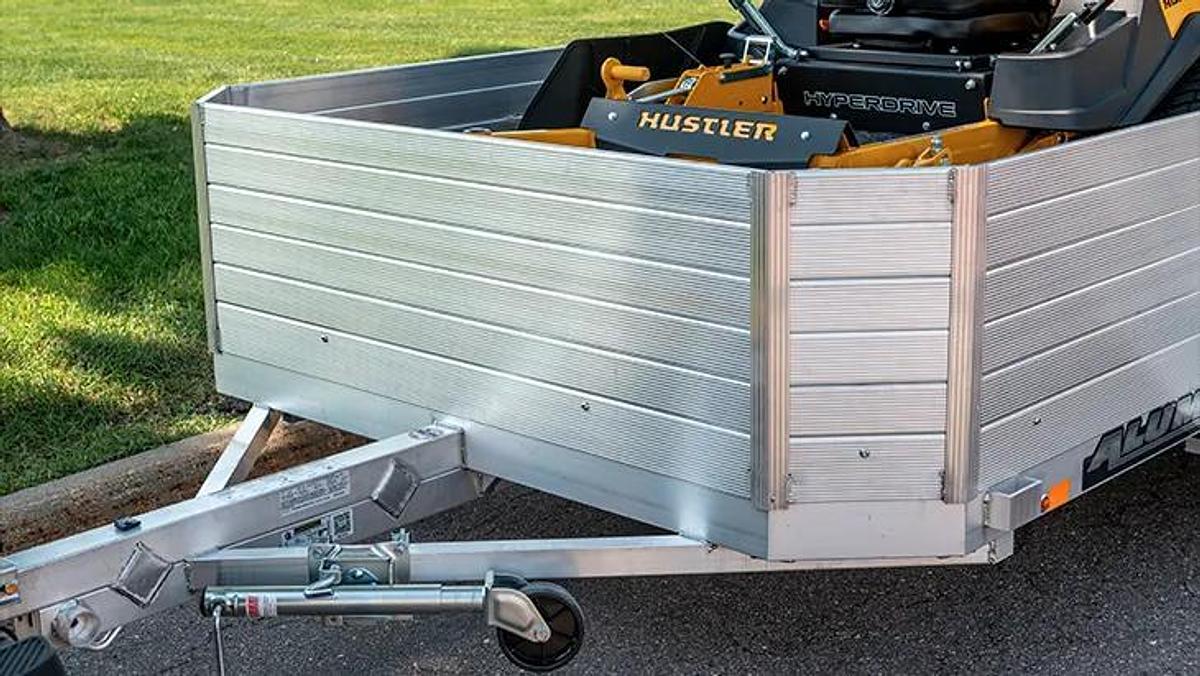

  • A-Framed aluminum tongue, 48″ long with 2″ coupler
  • 4) Stake pockets (2 per side)
  • 4) Tie down loops (2 per side)

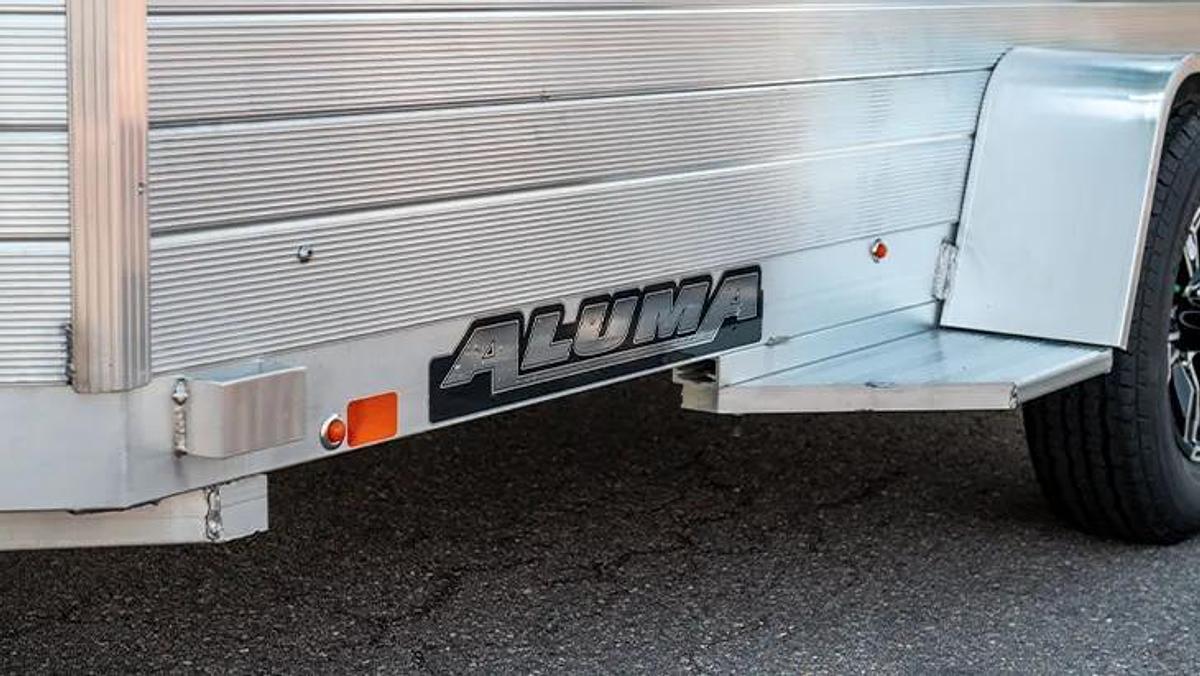

  • Fender Steps
  • Tongue Handle
  • Receptacle Holder
  • Swivel tongue jack, 1200# capacity
  • LED Lighting package, safety chains
  • Aluminum tailgate – 77.5″ x 44″ long / Bi-fold – 77.5″ x 60″ long
  • Overall width = 101.5″
  • Overall length = 194.5″
Optional
  • 20-0001941 Rock Guard Front Assemby (7710H-7712H)
  • 20-0001938 24″ Front & side rack set (7710-7710H)
  • 20-0001939 24″ Front & side rack set (7712-7712H)
  • 20-0001935 12″ Solid side rack set (7710-7710H)
  • 20-0001932 12″ Solid side rack set (7712-7712H)
  • 20-0001936 24″ Solid side rack set (7710-7710H)
  • 20-0001933 24″ Solid side rack set (7712-7712H)
  • 50-0004765 U-Channel 4.0625″ x 1.8125″ x .25″ x 2.50″ – Lg. Stake Pocket
  • 50-0003658 Loop Tie Down .625″ x 8″
  • 60-0000650 2000# RTD Stainless Steel Small
  • 20-0001930 Tire Carrier Spare 77 Series
  • 60-0001397 14″ Tire, Black Liger Aluminum
  • 20-0001393 Upgrade to 15″ Aluminum wheel & tire single axle
  • 20-0000081 Legs Stabilizer 7800 Complete Pair
  • 20-0001420 Upgrade Axle Electric Brake Single

Specifications

ManufacturerAluma
ModelEX-7712H
ConditionNew
ModelsEX7712H-S-TG (Standard Tailgate); EX7712H-S-BT (Bi-fold Tailgate)
Weight715#; 715#
Bed Size77″ x 142″; 77″ x 142″
Tires14″; 14″
