8200WB Drive Over Fenders Series

or
Call 918-470-6790

Description

Equipment DetailsStandard
  • 2) 3500# Rubber torsion axles or 2) 5200# Rubber torsion axles on Heavy models
  • WB20-28H come with 2) 5200# Rubber torsion axles – Easy lube hubs
  • Electric brakes, breakaway kit
  • ST205/75R14 Radial tires or ST225/75R15 Radial tires on Heavy models
  • Aluminum wheels, 5-4.5 BHP or 6-5.5 BHP

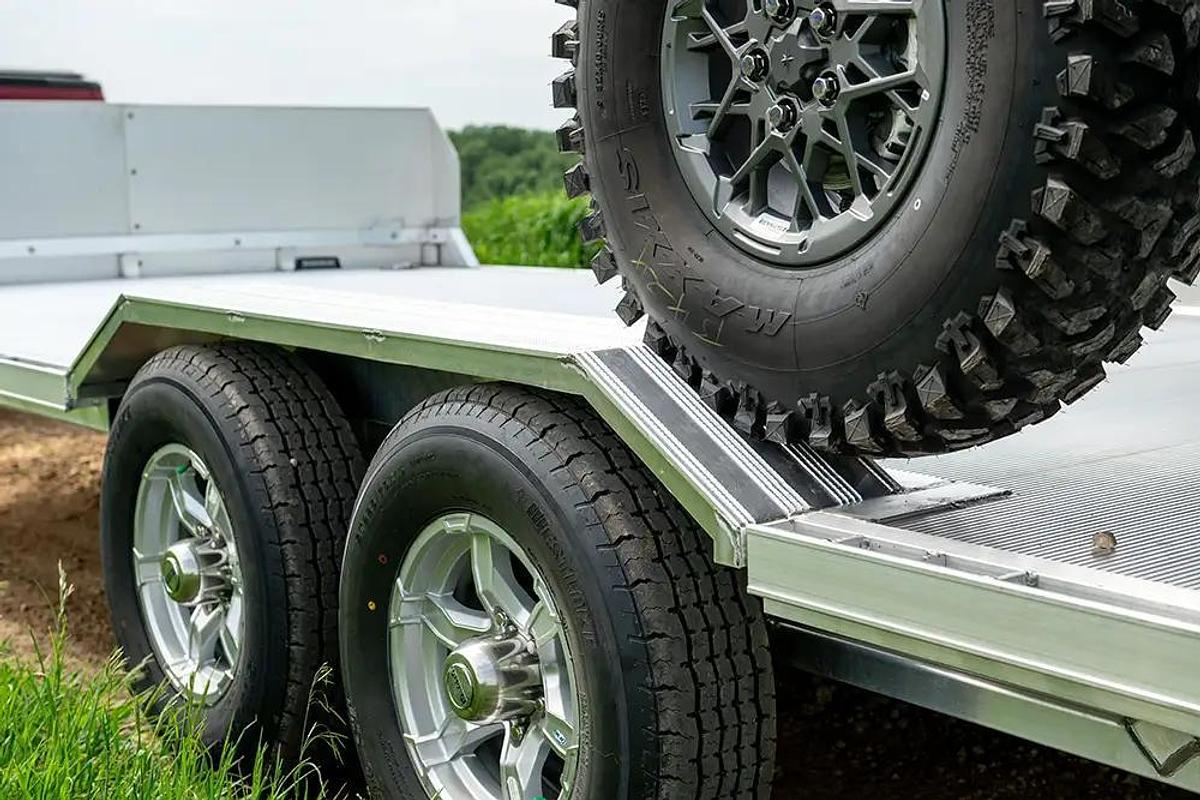

  • Drive-over aluminum fenders
  • Extruded aluminum floor
  • Front retaining rail
  • A-Framed aluminum tongue, 54″ long with 2-5/16″ coupler

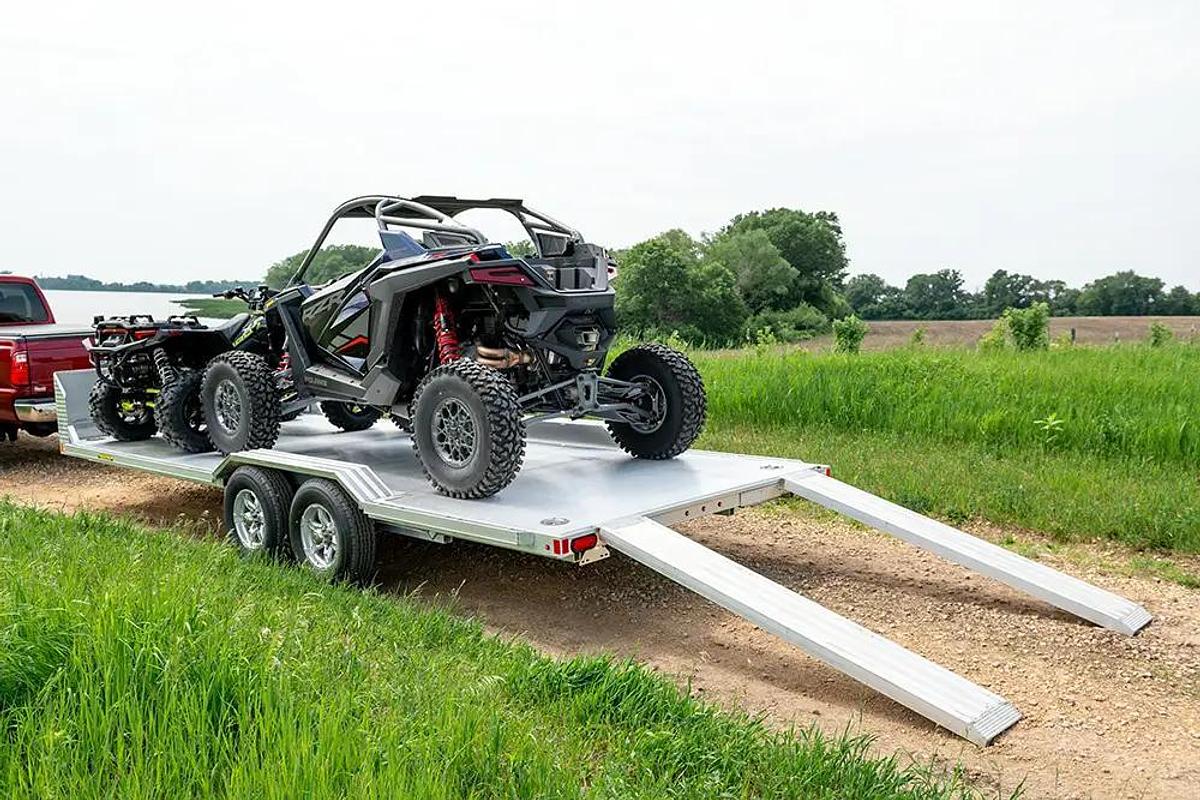

  • 2) 7′ Aluminum ramps with storage underneath
  • Rub rail welded to stake pockets on sides
  • 4) Recessed tie rings, SS #5000
  • 2) Fold-down rear stabilizer jacks
  • Swivel tongue jack, 1500# capacity
  • LED Lighting package, safety chains
  • 2 Front Load Lights
  • Overall width = 101.5″
  • Overall length = 254.5″ / 278.5″ / 302″ / 330″ / 349.5″ / 379.5″ / 406″
Optional
  • 8200-SBT Split bi-fold tailgate, no ramps
  • 8200H Upgrade to 2) 5200# axles – 15″ tires
  • 20-0001925 WB Rock Guard Assembly
  • 20-0001978 WB Air Dam Assembly
  • 50-0004765 U-Channel 4.0625″ x 1.8125″ x .25″ x 2.50″ – Lg. Stake Pocket
  • 60-0000650 2000# RTD Stainless Steel Small
  • 60-0000646 5000# RTD Stainless Steel Large
  • 60-0000807 1/2″ – 12″ U-bolt Spare Tire Mount
  • 20-0000271 Storage Box Package 60 Deg. 82 SERIES
  • 20-0001394 Upgrade 15″ Aluminum wheel and tire tandem axle
  • 60-0001490 14″Tire, Silver Aluminum
  • 60-0001492 15″ Tire Silver Aluminum 5 Bolt
  • 60-0001494 15″Tire, Silver Aluminum 6 Bolt
  • 20-0000004 6″ Vertical Spare Tire Carrier, 5 Bolt
  • 20-0000005 Spare Tire Carrier Package 6″ 6 Bolt Vertical
  • 20-0000080 Tire Carrier Flat Mount 5 Bolt
  • 20-0001473 Tire Carrier Flat Mount 6 Bolt
  • 20-0001454 Upgrade Axle Hydraulic Brakes Tandem

Specifications

ManufacturerAluma
Model8200WB Drive Over Fenders Series
ConditionNew
ModelsWB16-TA-EL-DOF-R-RR-RTD (Ramps) *Standard or Heavy Axle available; WB18-TA-EL-DOF-R-RR-RTD (Ramps) *Standard or Heavy Axle available; WB20H-TA-EL-DOF-R-RR-RTD (Ramps) *Heavy Axle Standard; WB22H-TA-EL-DOF-R-RR-RTD (Ramps) *Heavy Axle Standard; WB24H-TA-EL-DOF-R-RR-RTD (Ramps) *Heavy Axle Standard; WB26H-TA-EL-DOF-R-RR-RTD (Ramps) *Heavy Axle Standard; WB28H-TA-EL-DOF-R-RR-RTD (Ramps) *Heavy Axle Standard
Weight1450#; 1550#; 2000#; 2100#; 2200#; 2325#; 2450#
Bed Size8′ x 16′ (96.75″ x 191″); 8′ x 18′ (96.75″ x 216″); 8′ x 20′ (96.75″ x 239″); 8′ x 22’4″ (96.75″ x 268″); 8′ x 24′ (96.75″ x 287″); 8′ x 26′ (96.75″ x 317″); 8′ x 28’9″ (96.75″ x 345″)
Tires14″; 14″; 15″; 15″; 15″; 15″; 15″
