1020-14K Series

or
Call 918-470-6790

Description

Equipment DetailsStandard
  • 2-7000# Rubber torsion axles (14000# GVW) – Easy lube hubs
  • Electric brakes & breakaway kit
  • ST235/80R16 Radial tires 8-6.5 BHP

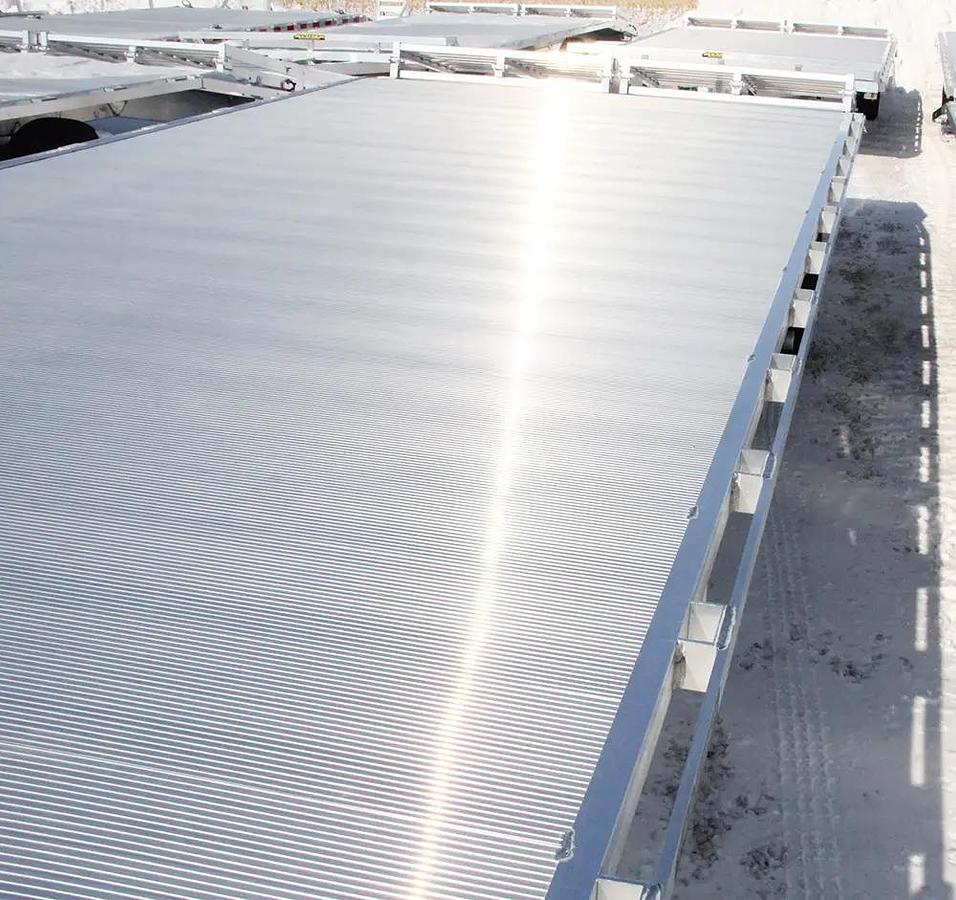

  • Heavy duty extruded aluminum floor
  • A-framed aluminum tongue with 2-5/16″ adjustable coupler
  • LED Lighting package, safety chains
  • 6) Bolt-on tie rings (galvanized #8000)
  • Receptacle holder

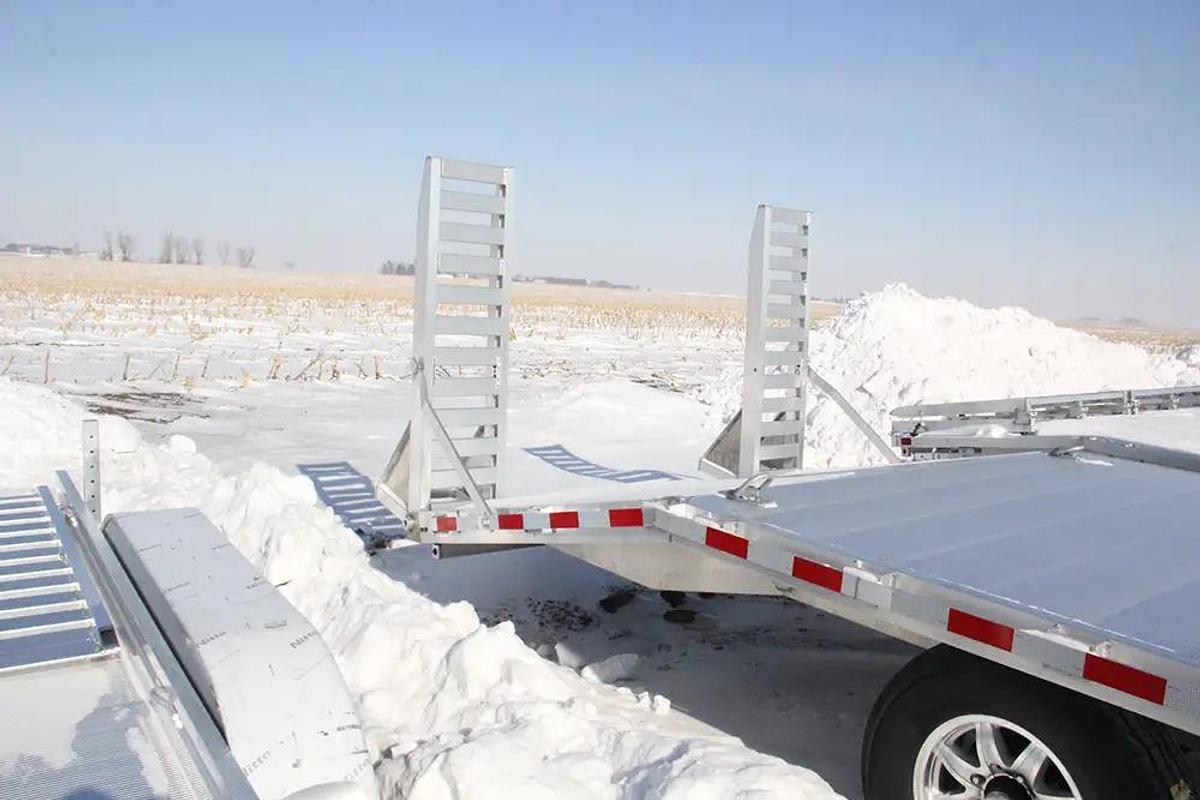

  • Dove tail, 60″ long with 16″ drop
  • Heavy duty tongue jack, 10k# capacity, spring loaded
  • Overall width = 101.5″
  • Overall length = 318″ / 328″ / 348″ / 376″
Optional
  • Part # Description
  • 20-0000289 Aluminum rock guard
  • 60-0001496 16″ Aluminum spare wheel & tire 8 bolt
  • 60-0000679 Bolt-on heavy duty tie-down
  • 20-0001362 Under frame spare mount

Specifications

ManufacturerAluma
Model1020-14K Series
ConditionNew
Models1020-14K-TA-EL-R-DT-RR-RTD; 1022-14K-TA-EL-R-DT-RR-RTD; 1024-14K-TA-EL-R-DT-RR-RTD; 1026-14K-TA-EL-R-DT-RR-RTD
Weight2775#; 3000#; 3225#; 3450#
Bed Size100″ x 20′; 100″ x 22′; 100″ x 24′; 100″ x 26′
Tires16″; 16″; 16″; 16″
