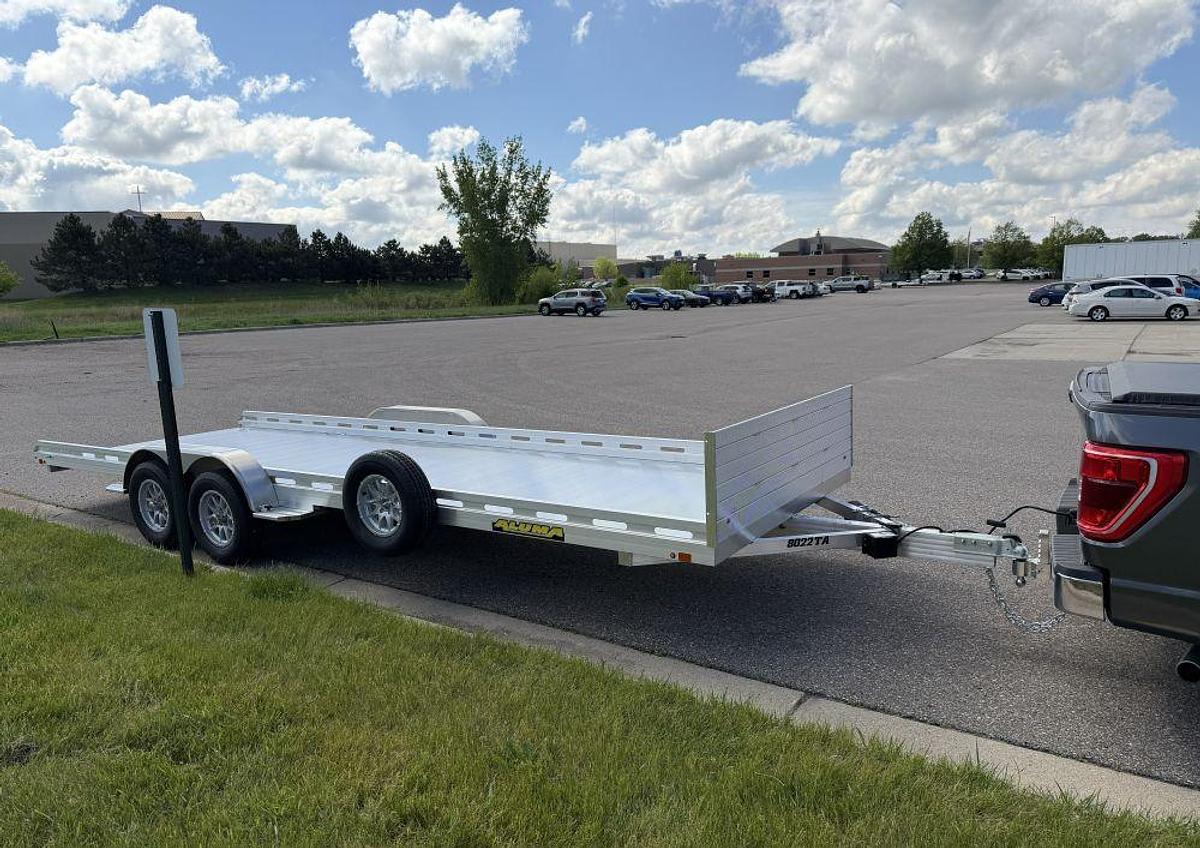

8014-8024TA-R Utility Trailers

or
Call 918-470-6790

Description

Equipment DetailsStandard
  • 2) 4400# Rubber torsion axles – Easy lube hubs (8500# GVWR)
  • Electric brakes, breakaway kit
  • ST205/75R15 Radial tires
  • Aluminum wheels, 5-4.5 BHP
  • Aluminum removable fenders
  • Extruded aluminum floor
  • 8.5″ Front & side retaining rails
  • A-Framed aluminum tongue, 48″ long with 2-5/16″ coupler
  • Tongue Handle
  • Receptacle Holder
  • Fender Steps
  • 2) 5′ Aluminum ramps with storage underneath (8014 has standard 4′ ramps)
  • 4) Recessed tie rings, SS #2000
  • Swivel tongue jack, 1500# capacity
  • LED Lighting package, safety chains
  • Overall width = 101.5″
  • Overall length = 235″ / 254″ / 281″ / 300″/321″/350″
Optional
  • Part # Description
  • 20-0002059 Rack Set, Front Solid Set 24″” Tall 80 Series
  • 50-0003658 Loop Tie Down .625″ x 8″
  • 60-0000650 2000# RTD Stainless Steel Small
  • 20-0000208 Storage Box 45Deg. 82TILT, 78
  • 20-0001930 Tire Carrier Spare, 77 Slotted Series
  • 20-0000080 Tire Carrier Flat Mount 5 Bolt
  • 60-0001492 15″ Tire, Silver Eagle Aluminum 5 bolt
  • 20-0000081 2) Aluminum rear stabilizer jacks

Specifications

ManufacturerAluma
Model8014-8024TA-R Utility
ConditionNew
Models8014TA-EL-R-RTD; 8016TA-EL-R-RTD; 8018TA-EL-R-RTD; 8020TA-EL-R-RTD; 8022TA-EL-R-RTD; 8024TA-EL-R-RTD
Weight1,145#; 1,195#; 1,245#; 1,295#; TBD; TBD
Bed Size81″ x 172.5″; 81″ x 192″; 81″ x 220.5″; 81″ x 240″; 81″ x 267″; 81″ x 291″
Tires15″; 15″; 15″; 15″; 15″; 15″
