7800 Series Utility Trailers
Description
Equipment DetailsStandard
- 2-3500# Rubber torsion axles – Easy lube hubs
- Electric brakes, breakaway kit
- ST205/75R14 Radial tires
- Aluminum wheels, 5-4.5 BHP
- Removable aluminum teardrop fenders
- Extruded aluminum floor
- 8.5″ Front & side retaining rails
- A-Framed aluminum tongue, 48″ long with 2-5/16″ coupler

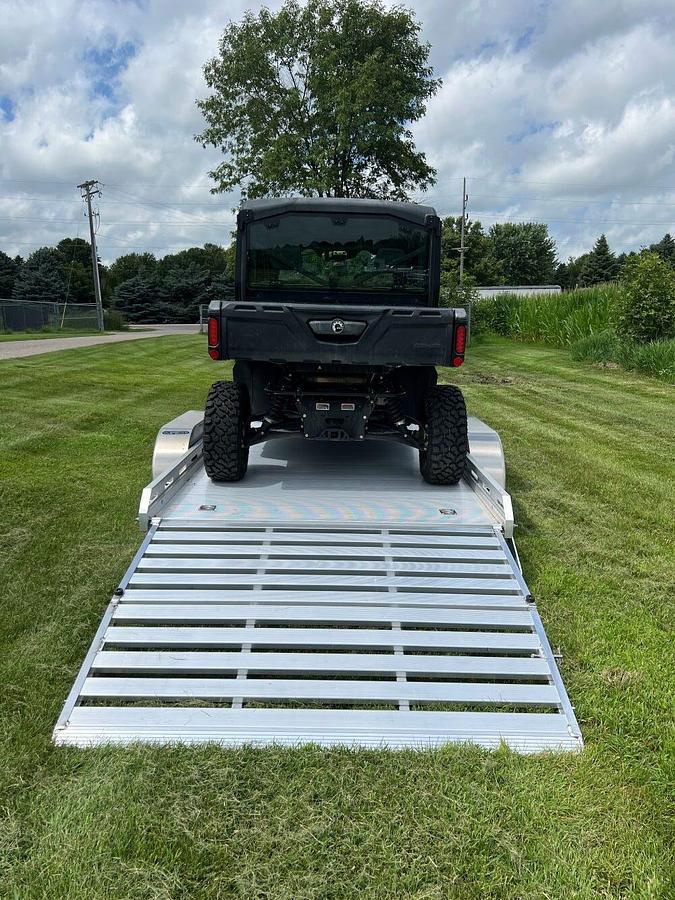

- 59″ Bi-Fold Tailgate – BT models only (shown in gallery below)
- 2) 5′ Aluminum ramps with storage underneath (7812 has 4′ ramps standard) – R models only
- 6) Stake pockets (3 per side) (7812 – 4 stake pockets, 2 per side)
- 4) Recessed tie rings, SS 2000#
- 2) Drop-down rear stabilizer jacks (Not standard on 7812-14, optional)
- Single-wheel swivel tongue jack, 1500# capacity
- LED Lighting package, safety chains
- Pull out ramps – 2) 4′ (7812) or 2) 5′ (7814, 7816, 7818) – R models only
- Overall width = 101.5″
- Overall length = 197″ / 226″ / 245″ / 272″ / 294″ / 322″ / 346″
- Part # Description
- 20-0001941 Front rock guard
- 7800DT Dove tail, 7800 Series
- 20-0000202 7800 Series airdam assembly
- 50-0004765 Extra stake pockets
- 50-0003658 Tie down loop
- 60-0000650 Recessed Tie Down SS 2,000#
- 60-0000267 Tongue handle
- 20-0000208 45° Storage box
- 20-0001930 Spare tire mounting bracket, side rail mount, 5-bolt
- 20-0000080 Spare tire mounting bracket, flat mount
- 60-0001490 14″ Aluminum spare wheel & tire
- 20-0001454 Hydraulic surge brakes
- 20-0001394 15″ Alum wheel & tire upgrade (tandem)
- 60-0001492 15″ Aluminum spare wheel & tire – 5 bolt
Specifications
| Manufacturer | Aluma |
| Model | 7800 Series Utility |
| Condition | New |
| Models | 7812TA-EL-R-RTD (Ramps); 7814TA-EL-R-RTD (Ramps); 7816TA-EL-R-RTD (Ramps); 7818TA-EL-R-RTD (Ramps); 7820TA-EL-R-RTD (Ramps); 7822TA-EL-R-RTD (Ramps); 7824TA-EL-R-RTD (Ramps) |
| Weight | 1050#; 1125#; 1175#; 1225#; 1275#; 1520#; 1570# |
| Bed Size | 77.5″ x 144″; 77.5″ x 173″; 77.5″ x 192″; 77.5″ x 221″; 77.5″ x 240″; 77.5″ x 268″; 77.5″ x 292″ |
| Tires | 14″; 14″; 14″; 14″; 14″; 14″; 14″ |
