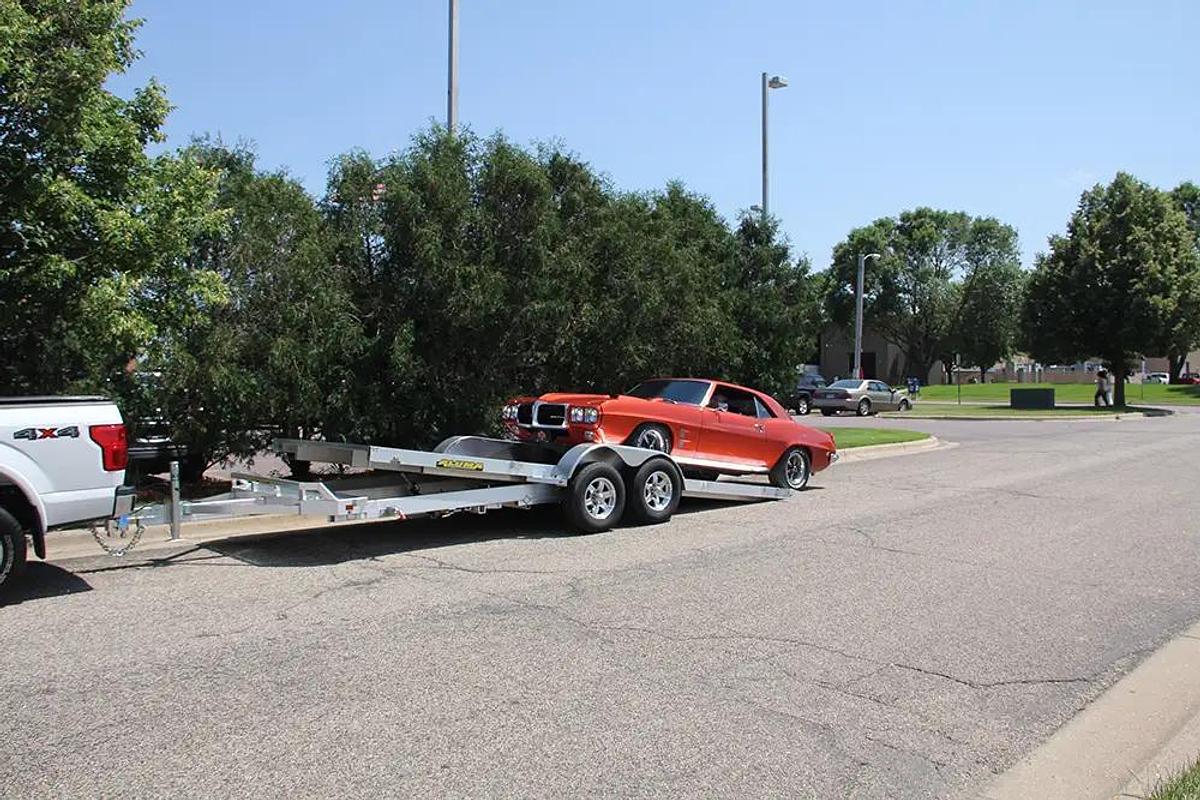

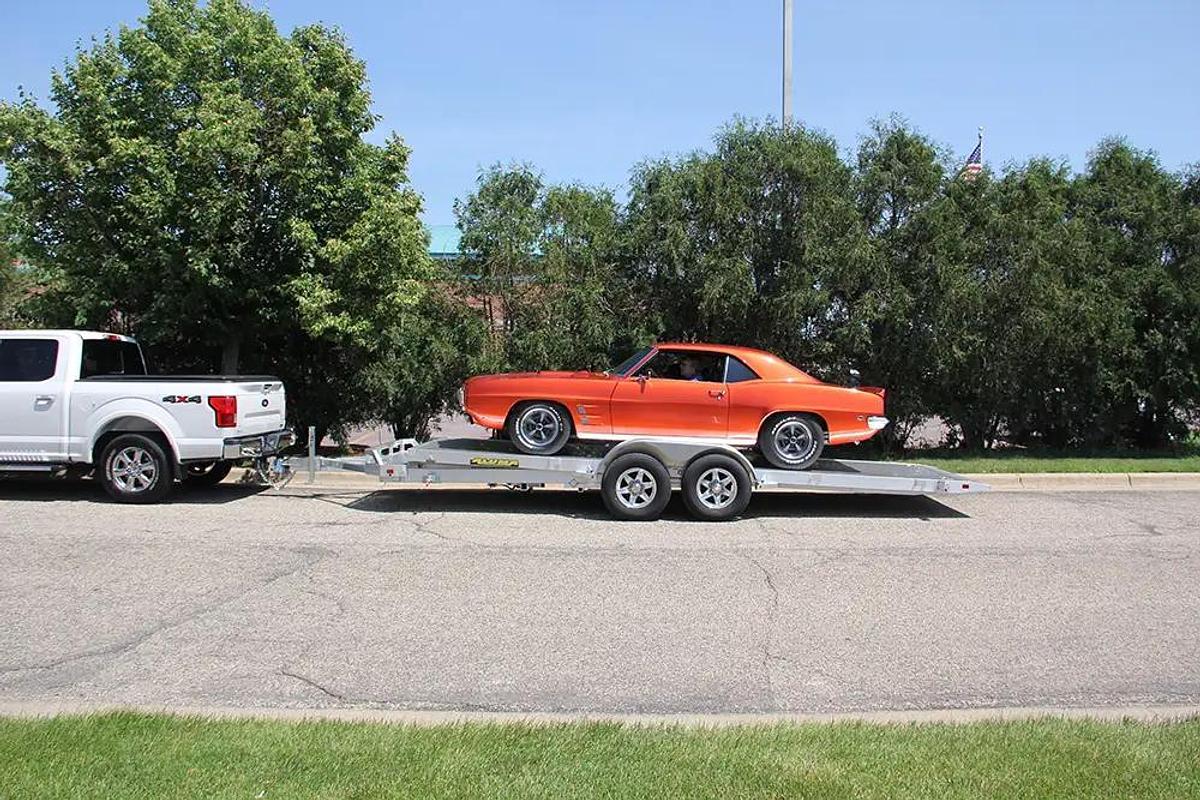

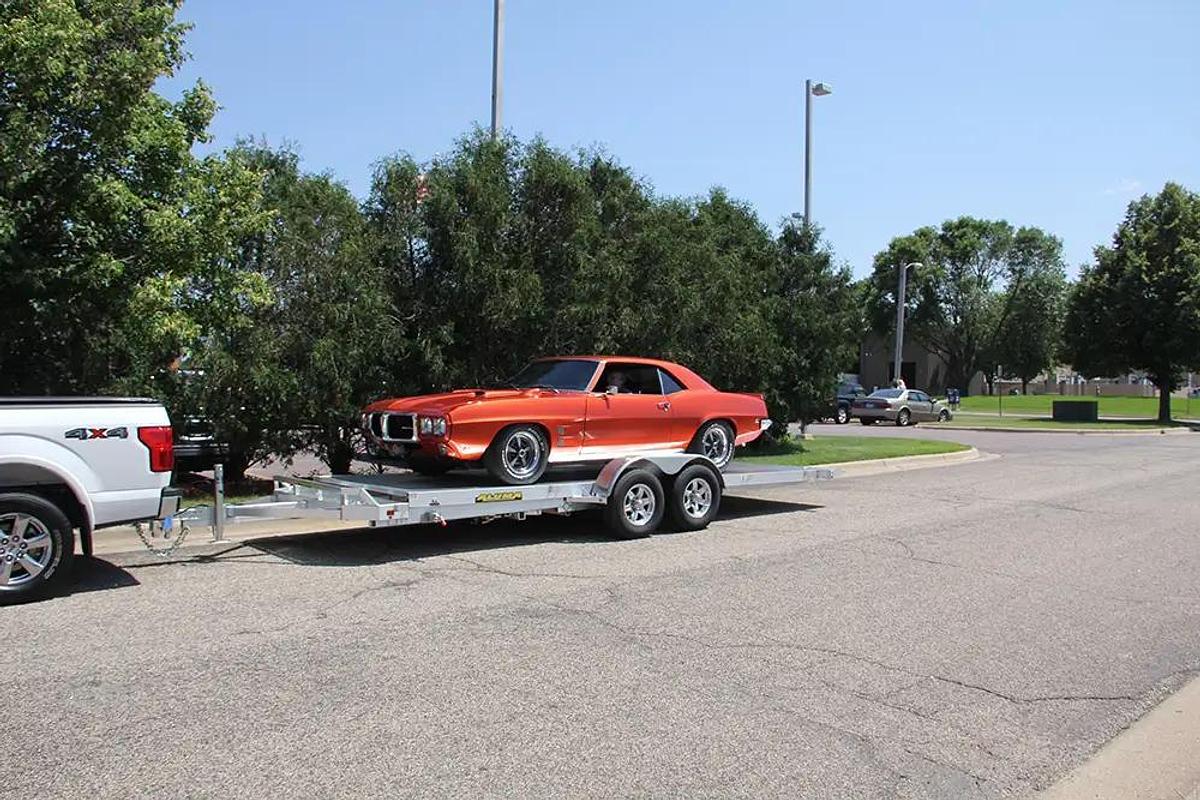

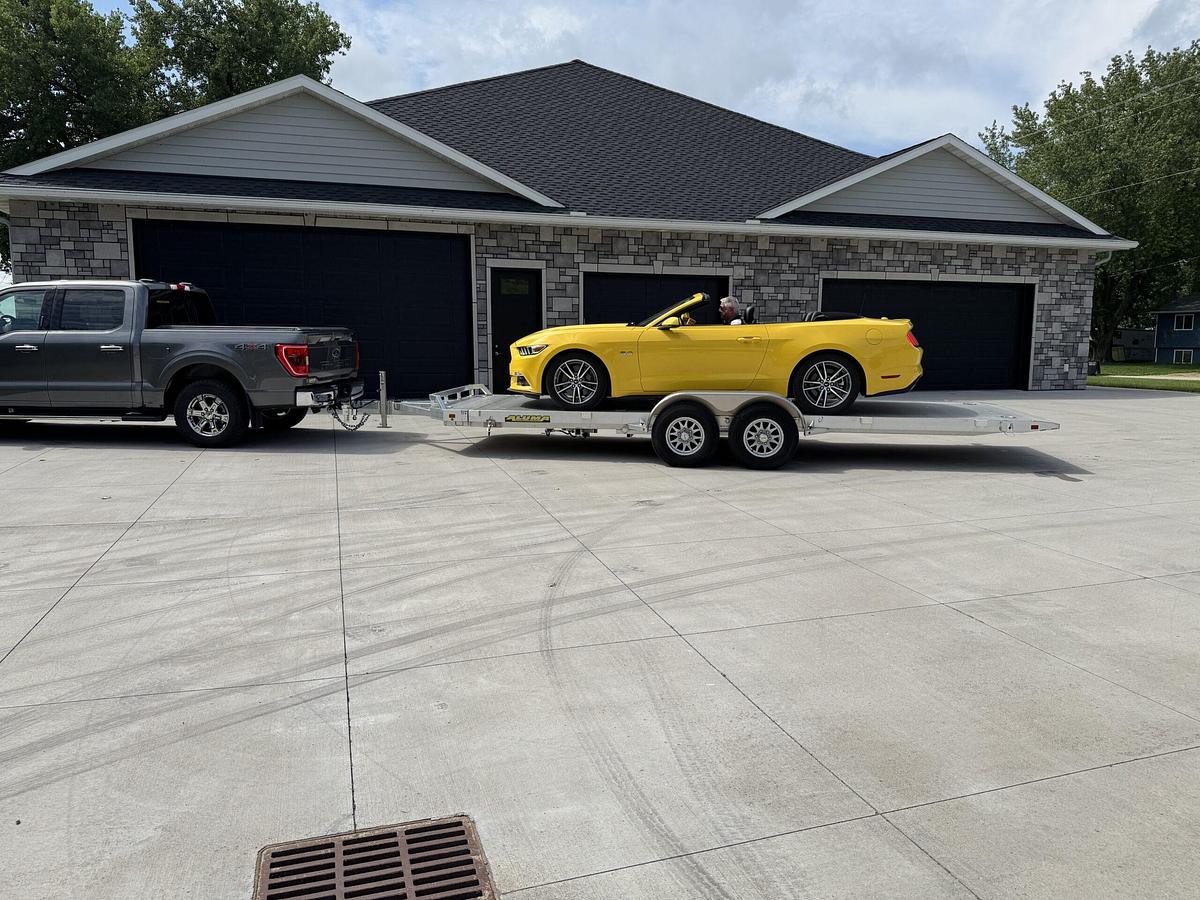

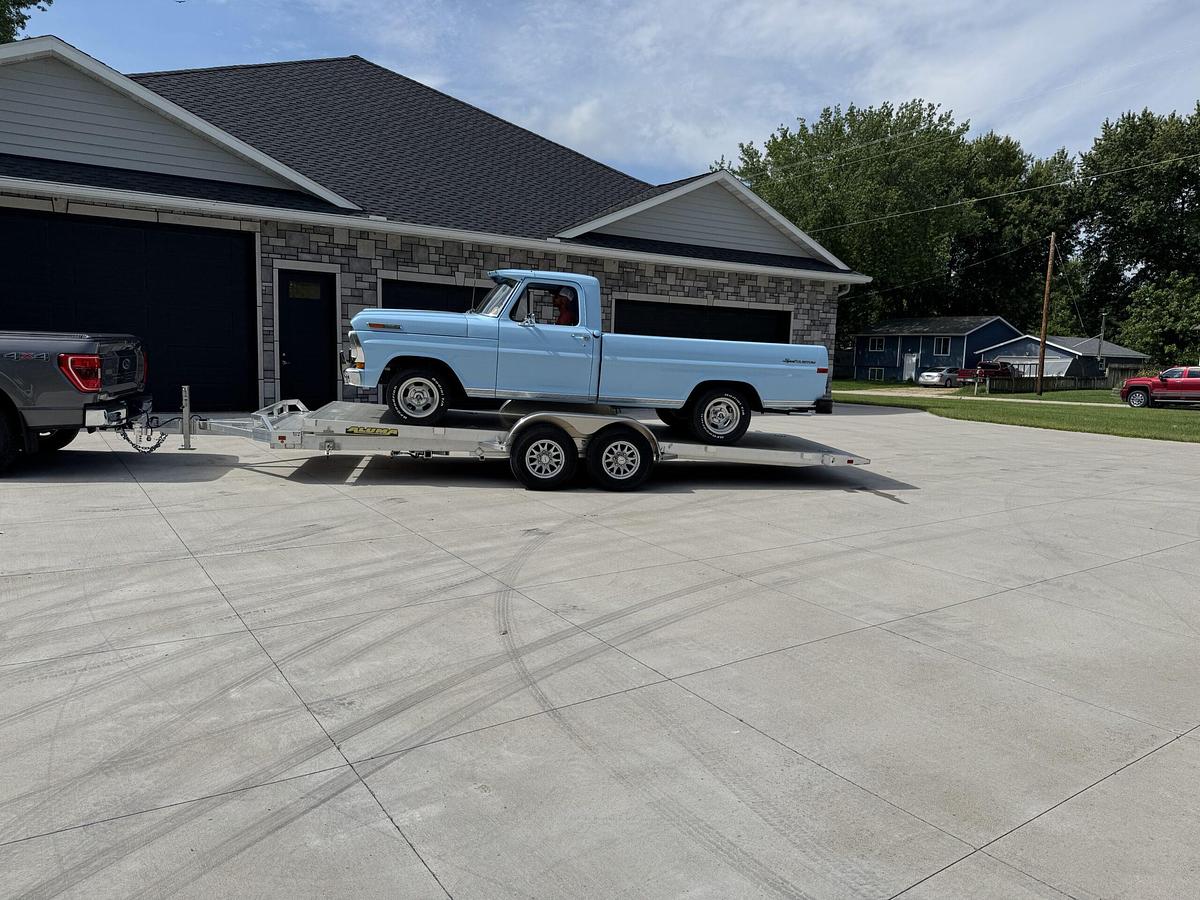

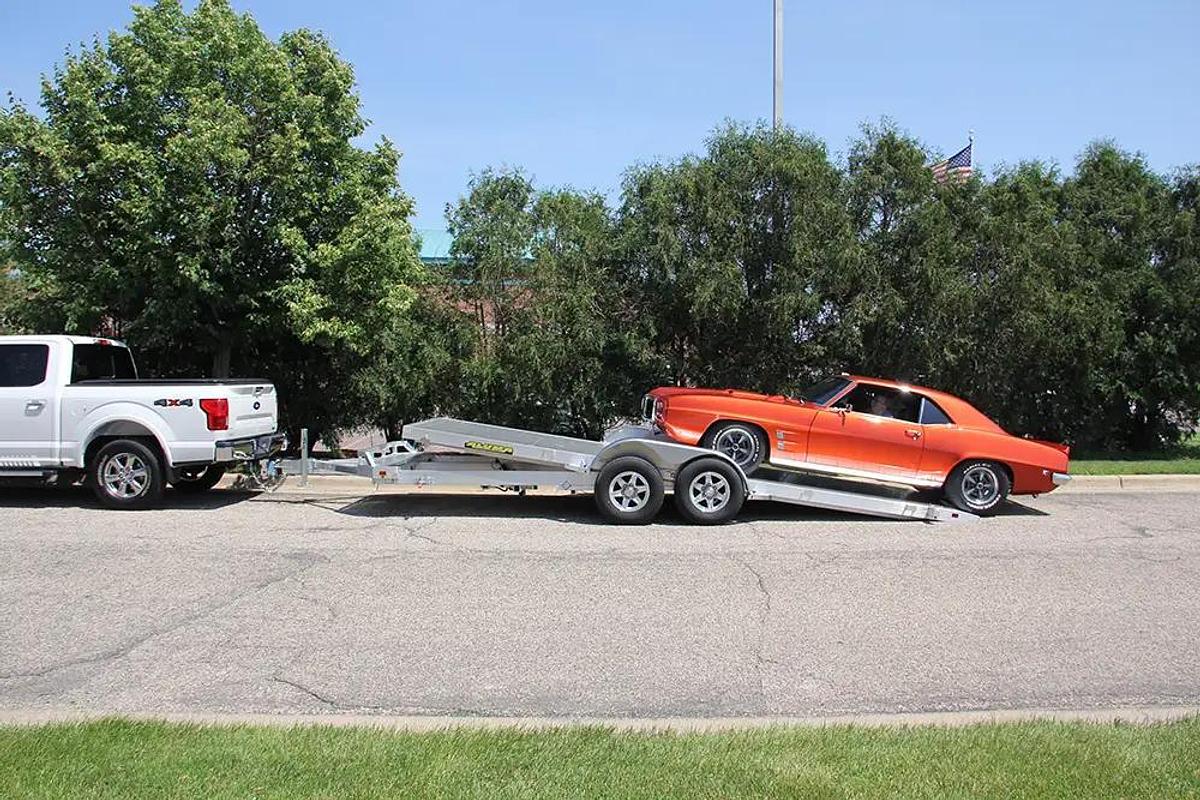

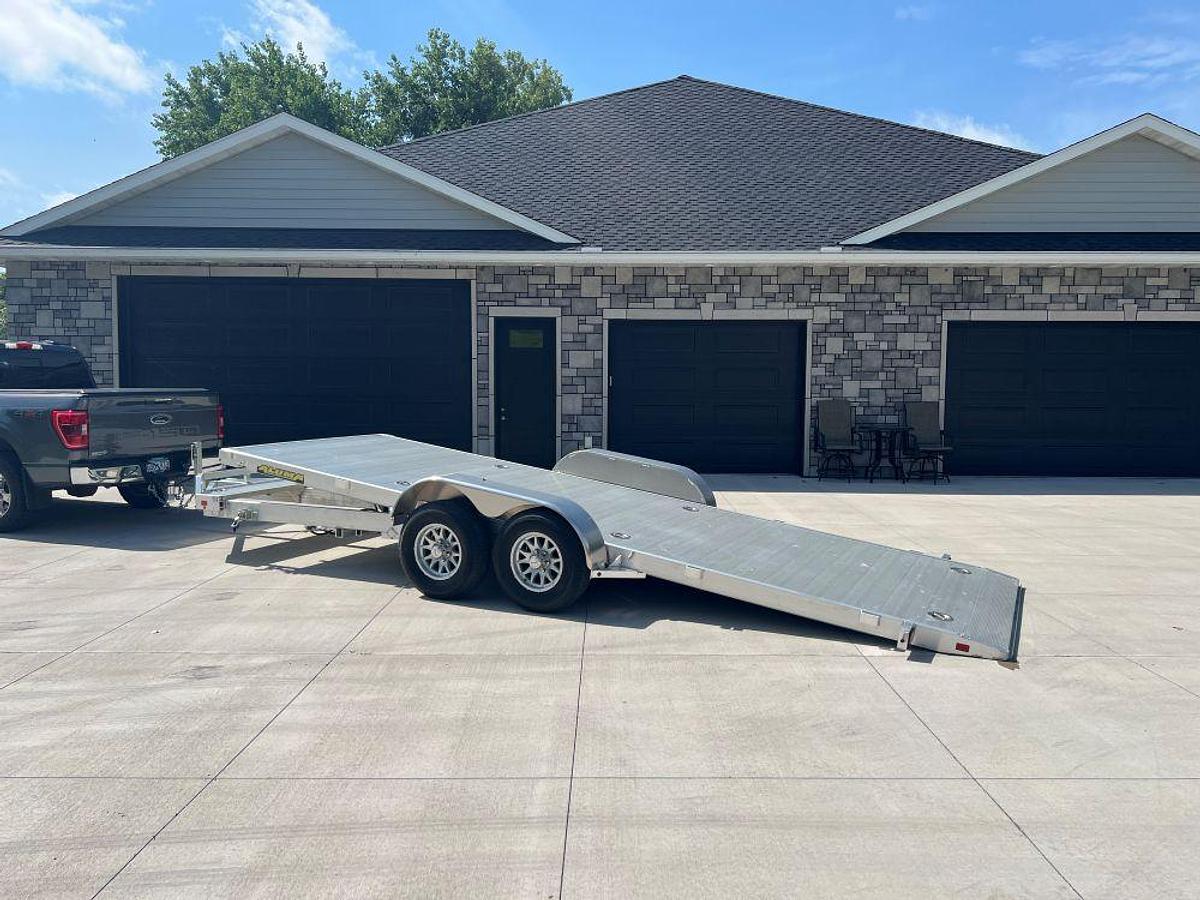

8200 TILT Series
Description
Equipment DetailsStandard
- 2-3500# Rubber torsion axles – Easy lube hubs
- Electric brakes, breakaway kit
- ST205/75R14 Radial tires standard models/ST225/75R15 Radial tires heavy models
- Aluminum wheels, 5-4.5 BHP or 6-5.5 BPH
- Control valve to adjust rate of descent
- Bed locks for travel and for locking bed in up position
- Removable aluminum teardrop fenders
- Extruded aluminum floor
- Front retaining rail
- A-Framed aluminum tongue, 44.5″ long with 2-5/16″ coupler
- 8) stake pockets (4 per side);
- 4) Recessed tie rings, SS 5000#
- Padded tongue jack, 2500# capacity
- LED Lighting package, safety chains
- Overall width = 101.5″
- Overall length = 270″ / 292″ / 317″
- 8200-PUD Factory installed power up/down with remote
- 8200H Upgrade to 2) 5200# axles – 15″ tires
- 20-0000265 Front rock guard, 3500# axle
- 20-0000266 Front rock guard, 4800/5200# axle
- 50-0004765 Extra stake pockets
- 60-0000650 Recessed Tie Down SS 2,000#
- 60-0000646 Recessed Tie Down SS 5,000#
- 20-0000208 45° Storage box
- 20-0000267 8200 Series airdam assembly
- 20-0001394 15″ Alum wheel & tire upgrade (tandem)
- 60-0001492 15″ Tire, Silver Aluminum
- 20-0001981 Side mount spare tire bracket – 6 bolt
- 20-0001980 Side mount spare tire bracket – 5 bolt
- 60-0001490 14″ Aluminum spare wheel & tire
- 60-0001494 15″ Aluminum spare wheel & tire – 6 bolt
- 20-0001454 Hydraulic surge brakes
- 20-0001425 Winch mount assembly
- 20-0001541 JT Package-Ramps-Air Dam-Stab Legs
Specifications
| Manufacturer | Aluma |
| Model | 8200 TILT Series |
| Condition | New |
| Models | 8216TILT-TA-EL-RTD; 8218TILT-TA-EL-RTD; 8220TILT-TA-EL-RTD |
| Weight | 1300#; 1400#; 1525# |
| Bed Size | 81″ x 196.5″; 81″ x 219″; 81″ x 244″ |
| Tires | 14″; 14″; 14″ |
