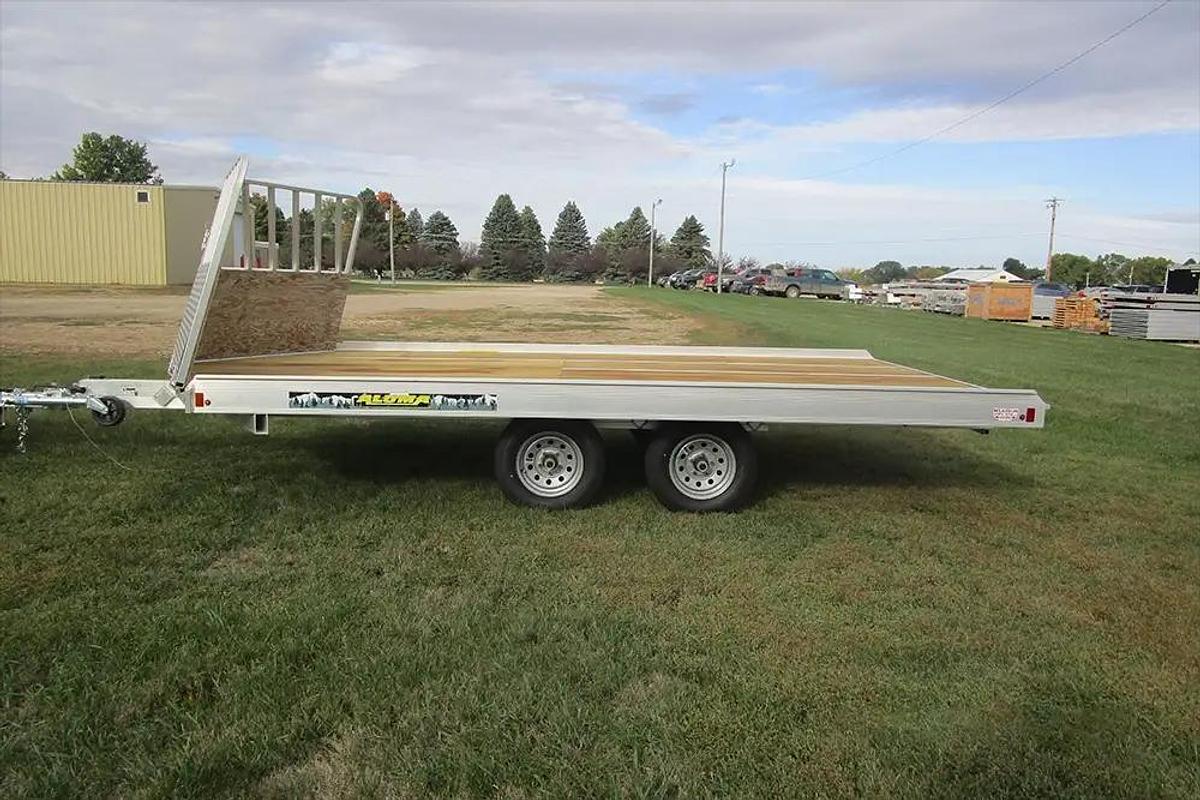

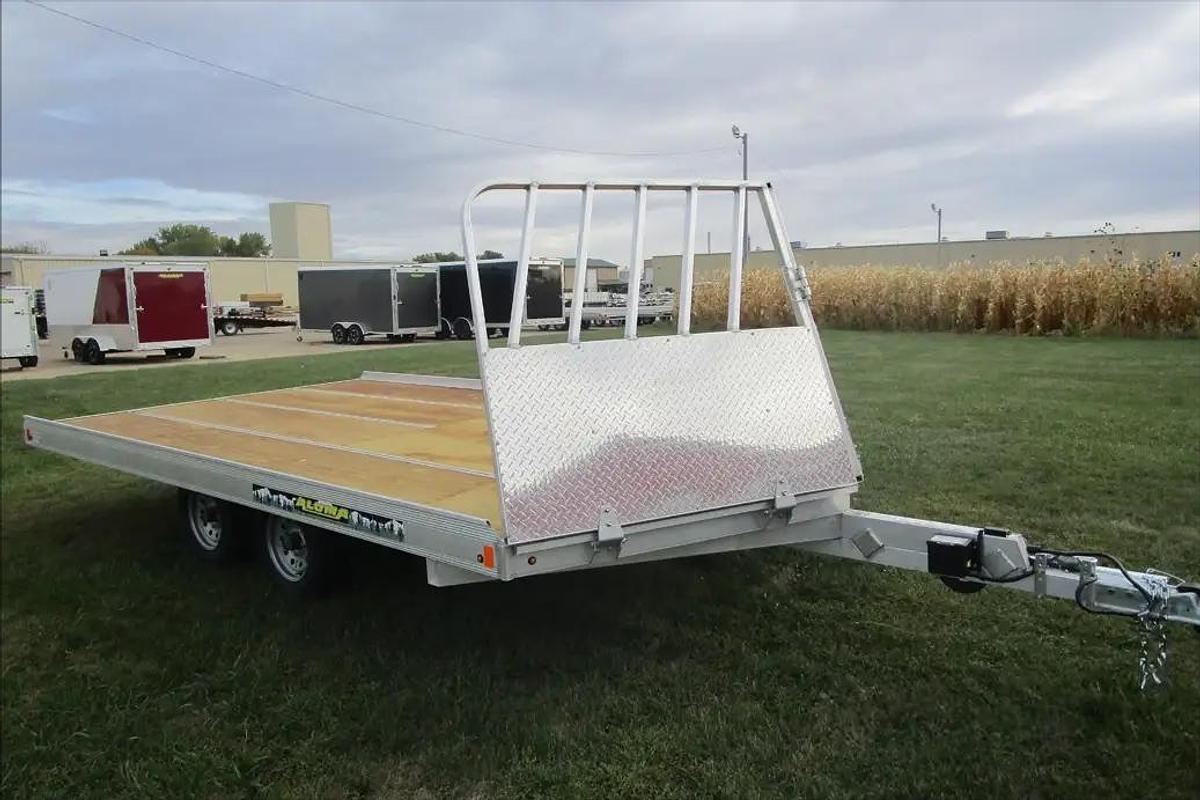

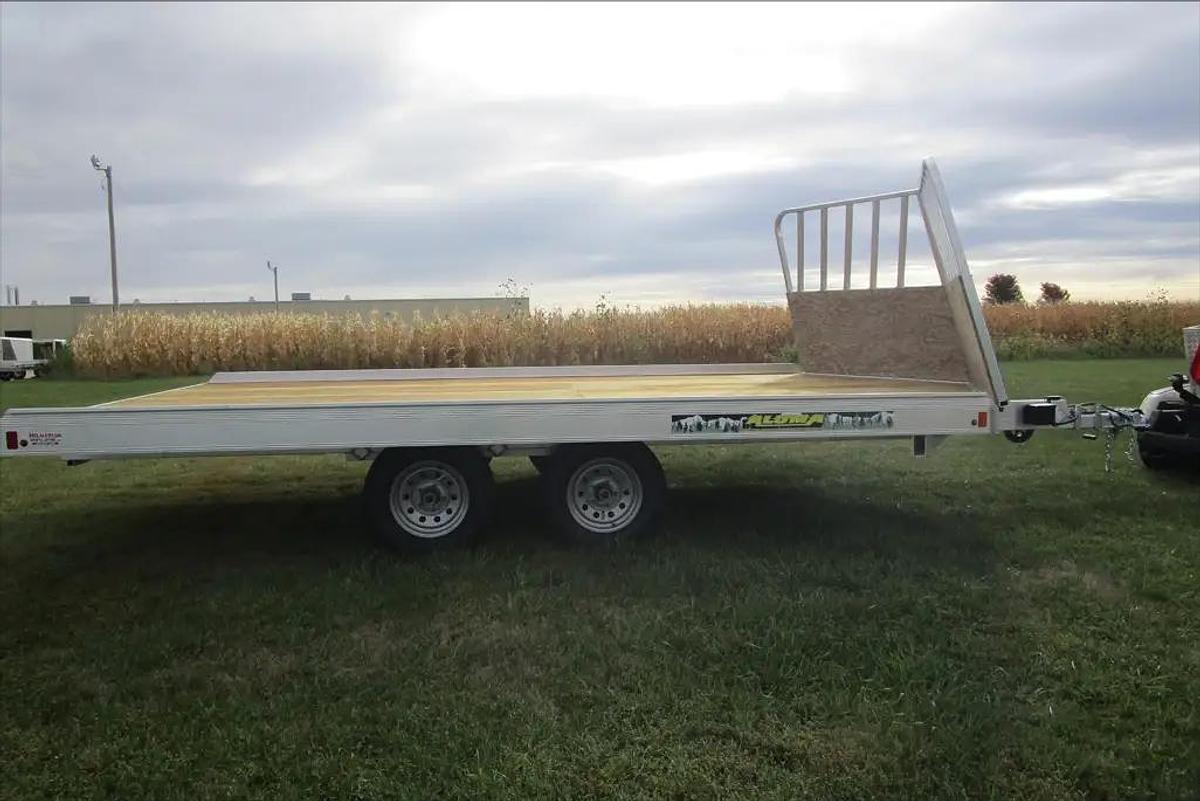

8614-8616 Snowmobile Trailers

or
Call 918-470-6790

Description

Equipment DetailsStandard
  • 2) 2200# Rubber torsion axle – No brakes on 8614 – Easy lube hubs
  • 8614EL & 8616EL come with brakes
  • ST145/R12 Radial tires 5-4.5 BHP
  • 12″ Steel wheels
  • Heavy-duty A-frame tongue with 2-5/16″ zinc-plated coupler
  • Nudo floor
  • 3) Ski hold-down bars with plastic sleeves
  • LED Lighting package, seal beam lights and wiring harness
  • 54″ x 72″ Removable aluminum ramp with storage underneath
  • Tongue Handle
  • Receptacle Holder
  • Swivel tongue jack, 1500# capacity
  • Safety chains
  • Overall width = 102″
  • Overall length = 240″ / 264″
Optional
  • Part # Description
  • 20-0001451 Combination salt shield & drive off ramp
  • 60-0000650 Recessed Tie Down SS 2,000#
  • 60-0000473 12″ Steel spare wheel & tire
  • 60-0000469 13″ Steel spare tire & wheel
  • 60-0000471 15″ Steel spare wheel & tire
  • 13TASL Upgrade to 13″ wheels & tires (tandem)
  • 14TASL Upgrade to 14″ wheels & tires (tandem)
  • 15TASL Upgrade to 15″ wheels & tires (tandem)
  • 13TAAL Upgrade to 13″ aluminum wheels & tires (tandem)
  • 14TAAL Upgrade to 14″ aluminum wheels & tires (tandem)
  • 15TAAL Upgrade to 15″ aluminum wheels & tires (tandem)
  • 40-0000592 Combo shield spare tire mount – new style
  • 20-0000080 Spare tire mounting bracket, flat mount
  • SRP-14SL Upgrade to 3500# axle, 14″ wheels & tires, and split ramp

Specifications

ManufacturerAluma
Model8614-8616 Snowmobile
ConditionNew
Models8614D-TA-R-12SL (Ramp); 8614D-TA-EL-R-12SL (Ramp); 8616D-TA-EL-R-12SL (Ramp)
Weight850#; 875#; 975#
Bed Size101.25″ x 168″; 101.25″ x 168″; 101.25″ x 192″
Tires12″; 12″; 12″

Documents
